architecture usage cable flexible production description:
Copper conductor PVC insulated Electrical Wire belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated voltage 450/750V or below.
More electrical cable H05VV-F 0.75*3c can be produced as below per your request:
Style |
Conductor |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Overall Diameter
(mm) |
Voltage
(V) |
Sectional Area(mm2) |
No./mm |
H03VVH2-F |
0.5*2C |
16/0.2 |
0.5 |
0.6 |
3.4*5.5±0.15 |
300 |
0.75*2C |
24/0.2 |
3.5*5.7±0.15 |
H03VV-F |
0.5*2c |
16/0.2 |
0.5 |
0.6 |
5.3±0.15 |
300 |
0.75*2c |
24/0.2 |
5.5±0.15 |
0.5*3c |
16/0.2 |
5.6±0.15 |
0.75*3c |
24/0.2 |
6.0±0.15 |
H05VVH2-F |
0.75*2C |
24/0.2 |
0.6 |
0.8 |
4.0*6.4 |
500 |
H05VV-F |
0.75*2C |
24/0.2 |
0.6 |
0.8 |
6.5±0.15 |
500 |
0.75*3C |
6.8±0.15 |
1.0*2C |
32/0.2 |
6.7±0.15 |
1.0*3C |
7±0.15 |
1.5*2C |
48/0.2 |
0.7 |
0.9 |
8±0.15 |
1.5*3C |
8.5±0.15 |
2.5*2C |
80/0.2 |
0.8 |
1.1 |
9.6±0.2 |
2.5*3C |
10±0.2 |

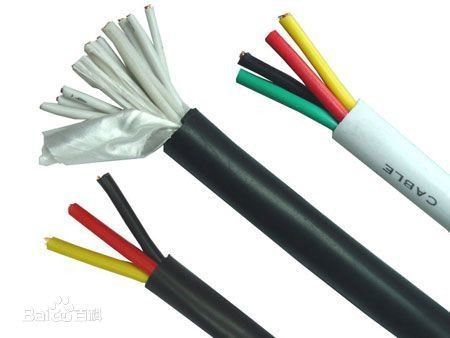

HO5VV-F electric flexible wire Description
construction:
Conductor: stranded bare copper
Insulation: color coded PVC
Jacket: color coded PVC
Rated temperature:70ºC
Rated voltage: 300V/500V
Refer to standard VDE 0281 HD21,IEC227
Applications
For use in tool and appliance applications. Rated for continuous use from -40°C up to 70°C.
Available Certifications
CE: 73/23/EEC, 93/68/EEC
IEC: 60227-5, 60332.1
VDE: 0281 Part-5
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.
Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
