construction cable single core building wire SDI electrical wire
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

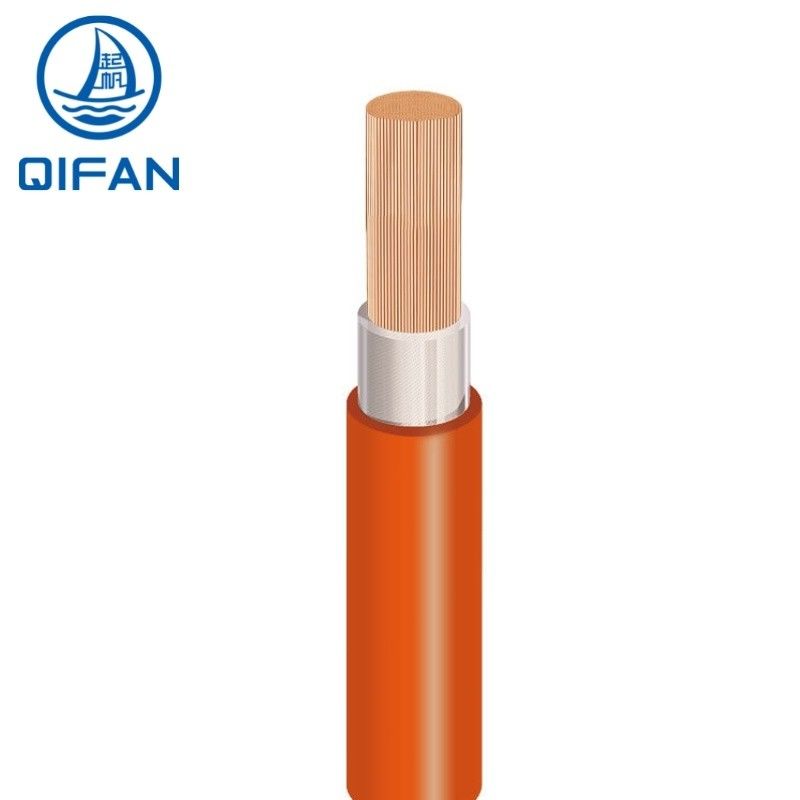

Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)
Cross Section:
1 core: 1.5~630mm2
Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: White or according to customer requirements
Sheath: Red or according to customer requirements
Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)
Cond.
Area mm |
Stranding
No/mm |
Insulation
Thick mm |
Sheath
Thick mm |
Nom.O/D
mm |
Min. Installed
Bending
Radius mm |
Approx.
Mass Kg/Km |
Order
Now |
| 1 |
1x1/1.13 |
0.6 |
0.8 |
4.1 |
20 |
30 |
|
| 1.5 |
1x7/0.50 |
0.6 |
0.8 |
4.5 |
20 |
40 |
|
| 2.5 |
1x7/0.67 |
0.7 |
0.8 |
5.2 |
25 |
55 |
|
| 4 |
1x7/0.85 |
0.8 |
0.9 |
6.2 |
25 |
80 |
|
| 6 |
1x7/1.04 |
0.8 |
0.9 |
6.8 |
30 |
100 |
|
| 10 |
1x7/1.35 |
1 |
0.9 |
8.2 |
35 |
145 |
|
| 16 |
1x7/1.70 |
1 |
1 |
9.4 |
40 |
225 |
|
Other sizes can also be produced as you required.
| Size |
Conductor Strands |
Insulation Thickness |
| 2x1.5mm2 |
7/0.52mm |
0.6mm |
| 2x2.5mm2 |
7/0.68mm |
0.7mm |
| 2x1.5mm2+1.5mm2 |
7/0.52mm |
0.6mm |
| 2x2.5mm2+2.5mm2 |
7/0.68mm |
0.7mm |
| 2x4mm2+2.5mm2 |
7/0.85mm+7/0.68mm |
0.8mm |
| 2x6mm2+2.5mm2 |
7/1.04mm+7/0.68mm |
0.8m |
