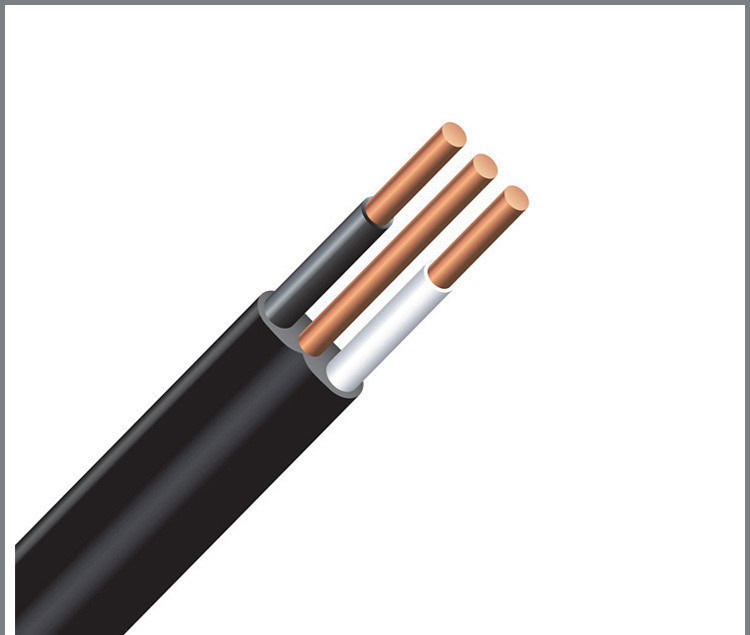

SAA TPS SDI Cable 2.5mm2 Twin with Earth Wire
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services
Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Filler - Flame retardant material
5. Binder Tape - Low smoke halogen-free flame retardant tape
6. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)
Cross Section:
2 core: 1.5~400mm2
3 core: 1.5~400mm2
4 core: 1.5~400mm2
5 core: 1.5~400mm2
2 core + earth: 1.5~400mm2
3 core + earth: 1.5~400mm2
4 core + earth: 1.5~400mm2
Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation:
2 core: Red, Black
3 core: Red, White, Blue
4 core: Red, White, Blue, Black
5 core: Red, White, Blue, Black, Y/G
2 core + earth: Red, Black, Y/G
3 core + earth: Red, White, Blue, Y/G
4 core + earth: Red, White, Blue, Black, Y/G
Sheath: Red or according to customer requirements
Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)
Other sizes can also be produced as you required.
| Size |
Conductor Strands |
Insulation Thickness |
| 2x1.5mm2 |
7/0.52mm |
0.6mm |
| 2x2.5mm2 |
7/0.68mm |
0.7mm |
| 2x1.5mm2+1.5mm2 |
7/0.52mm |
0.6mm |
| 2x2.5mm2+2.5mm2 |
7/0.68mm |
0.7mm |
| 2x4mm2+2.5mm2 |
7/0.85mm+7/0.68mm |
0.8mm |
| 2x6mm2+2.5mm2 |
7/1.04mm+7/0.68mm |
0.8m |
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) products have passed China Compulsory Certification (CCC), coal mine product safety mark certification, China Classification Society certification, Telus certification, German TUV certification, European Union CE certification, and United States UL certification.
FAQ
-------------------------------------------------------------------------------------------------
1. Who are we?
Fang Yu (Shanghai) Automation Technology Co., Ltd ,are based in Shanghai, China, start from 2006, is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.
2. How can we guarantee quallty?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Power cable ,UL certificate products,Fire resistant cable,Submarine Cable,ABC Cable,Building wire,Solar cable,Rubber Cable,Electrical Control Cable,digital communication cable,mineral insulated cable,Special wire and cable,Aerial Insulated Cable,High temperature resistant cable,Solar cable,XLPE insulated power cable,computer cable,Aluminum stranded wire,PVC insulated wire and cable,digital communication cable,etc
4. Why should you buy from us not from other supplers?
For many years, we have been focusing on the research and development of wire and cable products. Our R&D team has over ten years of experience. All of our products are produced directly from the factory. We accept OEM and ODM!
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP ,FCA, CPT, DEQ, DDP ,DDU,
6. Can I get samples?
We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.
7.What is your packing way? Can I have the customized package?
We have the standard export package. For more details about the customized package, please contact us.
