Qifan Aluminum Conductor Steel Reinforced Reel And Drum Stranded 1/0 2/0 4/0 Bare AAC 1350-H19

Name: Qifan Aluminum Conductor Steel Reinforced Reel And Drum Stranded 1/0 2/0 4/0 Bare AAC 1350-H19
Brand: Qifan
SKU: AAC Daisy
Price: 3 USD
Availability: InStock
Rating: 4.9 (107 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO9001, CCC, RoHS

Model Number: AAC Daisy

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1mm aluminum conductor steel reinforced, 2mm aluminum conductor steel reinforced, 4mm aac conductor


Model NO.:	AAC Daisy	Material Shape:	Round Wire
Range Of Application:	Transmission Power Line	Brand:	Qifan
Warranty:	10 Years	QC:	200
Color:	Silver	Transport Package:	Reel And Drum
Specification:	1/0 2/0 4/0	Trademark:	Qifan
Origin:	China	HS Code:	761490000
Supply Ability:	50ton Per Day	Type:	Bare
Conductor Type:	Stranded	Application:	Overhead
Conductor Material:	Aluminum	Sheath Material:	Bare
Insulation Material:	Bare

Model NO.:	AAC Daisy
Material Shape:	Round Wire
Range Of Application:	Transmission Power Line
Brand:	Qifan
Warranty:	10 Years
QC:	200
Color:	Silver
Transport Package:	Reel And Drum
Specification:	1/0 2/0 4/0
Trademark:	Qifan
Origin:	China
HS Code:	761490000
Supply Ability:	50ton Per Day
Type:	Bare
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Sheath Material:	Bare
Insulation Material:	Bare

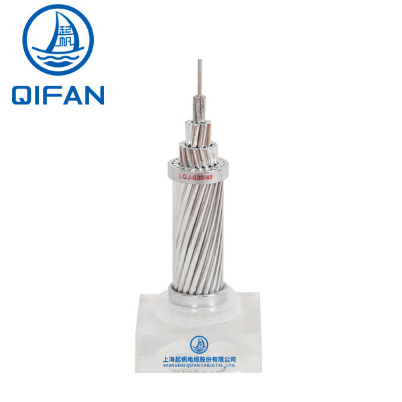

Qifan Aluminum Conductor Steel Reinforced Reel And Drum Stranded 1/0 2/0 4/0 Bare AAC 1350-H19

Product Description

Reel and Drum Stranded Qifan 1/0 2/0 4/0 Bare AAC 1350-H19

Transmission Use overhead aluminium cable AAC Conductor for Overhead Use

1.Features :
a.High tensile strength
b.Long life
c.Light in weight
d.Suitable for high as well as extra high overhead voltage lines

2.Brief Description:
AAC conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).AAC CONDUCTOR is available in a wide range of steel varying from as low as 6% to as high as 40 %. The higher strengthAAC CONDUCTORS are used for river crossings, overhead ground wires, installations involving extra long spans etc.. Against any given resistance of conductor, AAC CONDUCTORS may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as with lesser supports. Due to the greater diameter of AAC CONDUCTORS a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.

3.Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable. AAC CONDUTOR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. AAC CONDUTORS are used extensively for overhead ground wires, river crossings etc. These AAC CONDUTORS are available with us in various types for meeting the exact requirements of the clients.

4. AAC all aluminum conductors strand.

IEC standard

Code Number	Area	Number of Wires	Diameter		Linear Mass	Rated Strength	Max.D.C.Resistence at 20ºC
Code Number	mm2		Wire	Cond.	kg/km	kN	Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.4	68.4	4.5	1.1453
40	40	7	2.7	8.09	109.4	6.8	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.59	12.9	274.8	17	0.2877
125	125	19	2.89	14.5	343.6	21.25	0.2302
160	160	19	3.27	16.4	439.8	26.4	0.1798
200	200	19	3.66	18.3	549.7	32	0.1439
250	250	19	4.09	20.5	687.1	40	0.1151
315	315	37	3.29	23	867.9	51.97	0.0916
400	400	37	3.71	26	1102	64	0.0721
450	450	37	3.94	27.5	1239.8	72	0.0641
500	500	37	4.15	29	1377.6	80	0.0577
560	560	37	4.39	30.7	1542.9	89.6	0.0515
630	630	61	3.63	32.6	1738.3	100.8	0.0458
710	710	61	3.85	34.6	1959.1	113.6	0.0407
800	800	61	4.09	36.8	2207.4	128	0.0361
900	900	61	4.33	39	2483.3	144	0.0321
1000	1000	61	4.57	41.1	2759.2	160	0.0289
1120	1120	91	3.96	43.5	3093.5	179.2	0.0258
1250	1250	91	4.18	46	3452.6	200	0.0231
1400	1400	91	4.43	48.7	3866.9	224	0.0207
1500	1500	91	4.58	50.4	4143.1	240	0.0193

BS 215

Code name	Nominal	Number	Cross-	Overall	Weight	Calculated Breaking Load	Max.D.C. Resistance at 20ºC


	( mm² )	( mm )	( mm² )	( mm )	( kg/km )	daN	Ω/km
Midge	22	7/2.06	23.33	6.18	64	399	1.227
Aphis	25	3/3.35	26.44	7.22	74	411	1.081
Gnat	25	7/2.21	26.85	6.63	73	459	1.066
Weevil	30	3/3.66	31.56	7.89	86	486	0.9082
Mosquito	35	7/2.59	36.88	7.77	101	603	0.7762
Ladybird	40	7/2.79	42.8	8.37	117	687	0.6689
Ant	50	7/3.10	52.83	9.3	145	828	0.5419
Fly	60	7/3.40	63.55	10.2	174	990	0.4505
Bluebottle	70	7/3.66	73.65	10.98	202	1134	0.3881
Earwig	75	7/3.78	78.55	11.34	215	1194	0.3644
Grasshopper	80	7/3.91	84.05	11.73	230	1278	0.3406
Clegg	90	7/4.17	95.6	12.51	262	1453	0.2994
Wasp	100	7/4.39	106	13.17	290	1600	0.2702
Beetle	100	19/2.67	106.4	13.35	293	1742	0.2704
Bee	125	7/4.90	132	14.7	361	1944	0.2169
Cricket	150	7/5.36	157.9	16.08	432	2385	0.1818
Hornet	150	19/3.25	157.6	16.25	434	2570	0.1825
Caterpilar	175	19/3.53	185.9	17.65	511	2863	0.1547
Chafer	200	19/3.78	213.2	18.9	587	3240	0.1349
Spider	225	19/3.99	237.6	19.95	654	3601	0.1211
Cockroach	250	19/4.22	265.7	21.1	731	4040	0.1083
Butterfly	300	19/4.65	322.7	23.25	888	4875	0.08916
Moth	350	19/5.00	373.1	25	1027	5637	0.07711
Drone	350	37/3.58	372.4	25.06	1027	5745	0.07741
Locust	400	19/5.36	428.7	26.8	1180	6473	0.0671
Centipede	400	37/3.78	415.2	26.46	1145	6310	0.06944
Maybug	450	37/4.09	486.1	28.63	1340	7401	0.05931
Scorpion	500	37/4.27	529.8	29.89	1461	7998	0.05441
Cicada	600	37/4.65	628.3	32.55	1732	9495	0.04588
Tarantula	750	37/5.23	794.9	36.61	2192	12010	0.03627

ASTM B231

Code Name	Total Area		Stranding and wire diameter mm	Linear Mass kg/km	Overall Diameter mm	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/k
Code Name	AWG or MCM	mm2	Stranding and wire diameter mm	Linear Mass kg/km	Overall Diameter mm	Nominal Breaking Load daN	Max. D.C. Resistance at 20ºC ≤Ω/k
Peachbell	6	13.29	7/1.554	37	4.67	249	2.1692
Rose	4	21.16	7/1.961	58	5.89	396	1.3624
Iris	2	33.61	7/2.474	93	7.42	597	0.8577
Pansy	1	42.39	7/2.776	117	8.33	732	0.6801
Po ppy	1/0	53.48	7/3.119	147	9.36	873	0.5390
Aster	2/0	67.42	7/3.503	186	10.51	1100	0.4276
Phlox	3/0	85.03	7/3.932	234	11.80	1347	0.3390
Oxlip	4/0	107.23	7/4.417	296	13.26	1698	0.2688
Valerian	250	126.71	19/2.931	349	14.57	2062	0.2275
Sneezewort	250	126.71	7/4.80	349	14.4	2007	0.2275
Laurel	266.8	135.16	19/3.01	373	15.05	2200	0.2133
Daisy	266.8	135.16	7/4.96	373	14.9	2141	0.2133
Peony	300	152.0	19/3.193	419	15.97	2403	0.1896
Tulip	336.4	170.45	19/3.381	470	16.91	2695	0.1691
Daffodil	350	177.35	19/3.447	489	17.24	2804	0.1625
Canna	397.5	201.42	19/3.673	555	18.36	3184	0.1431
Goldentuft	450	228	19/3.909	629	19.55	3499	0.1264
Syringa	477	241.68	37/2.882	666	20.19	3849	0.1193
Cosmos	477	241.68	19/4.023	666	20.12	3708	0.1193
Hyacinth	500	253.35	37/2.951	698	20.65	4035	0.1138
Zinnia	500	253.35	19/4.12	698	20.6	3888	0.1138
Dahlia	556.5	282	19/4.346	777	21.73	4327	0.1022
Mistletoe	556.5	282	37/3.114	777	21.79	4362	0.1022
Meadowsweet	600	304	37/3.233	838	22.63	4703	0.0948
Orchid	636	322.25	37/3.33	888	23.31	4985	0.0894
Heuchera	650	329.35	37/3.366	908	23.56	5095	0.0875
Flag	700	354.71	61/2.72	978	24.48	5146	0.0813

DIN 48201

Code Number	Caculated Area	Stranding and wire Diameter	Overall Diameter	Linear Mass	Calculated Breaking Load	Max D.C.Resistance at 20ºC
mm2	mm2	mm	mm	kg/km	daN	Ω,km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2 50	7.5	94	585	0.8332
50	49.48	7/3.00	9	135	810	0.5786
50	48.36	19/1.80	9	133	860	0.595
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117	19/2.50	14	322	1910	0.2459
150	147.1	37/2.25	15.2	406	2570	0.196
185	181.6	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/2.89	26	1105	6190	0.07221
500	499.83	61/3.23	29.1	1381	7600	0.05781
625	626.2	91/2.96	32.6	1733	9690	0.04625
500	802.1	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

Qifan Aluminum Conductor Steel Reinforced Reel And Drum Stranded 1/0 2/0 4/0 Bare AAC 1350-H19 1 The "Reel and Drum Stranded 1/0 2/0 4/0 Bare AAC 1350-H19" refers to a type of bare overhead conductor used for electrical power transmission and distribution.
Reel and Drum Stranded: This indicates that the conductors are stranded and supplied on reels or drums for convenient handling and installation. Stranding involves twisting multiple individual strands of aluminum together to form a larger conductor.

1/0, 2/0, 4/0: These numbers represent the conductor sizes or cross-sectional areas. In this case, 1/0, 2/0, and 4/0 are commonly used sizes for bare overhead conductors. The sizes are typically specified in American Wire Gauge (AWG) or circular mils.

Bare AAC: AAC stands for "All Aluminum Conductor." It means that the conductor is made entirely of aluminum without any additional metallic coatings. Bare conductors are commonly used in overhead power lines where insulation is not required.

1350-H19: 1350-H19 refers to the specific alloy and temper of the aluminum used in the conductor. The number 1350 indicates the aluminum alloy, which is primarily composed of aluminum with small amounts of other elements. H19 represents the temper or hardness of the aluminum, indicating that it has undergone a specific heat treatment process to achieve the desired mechanical properties.
