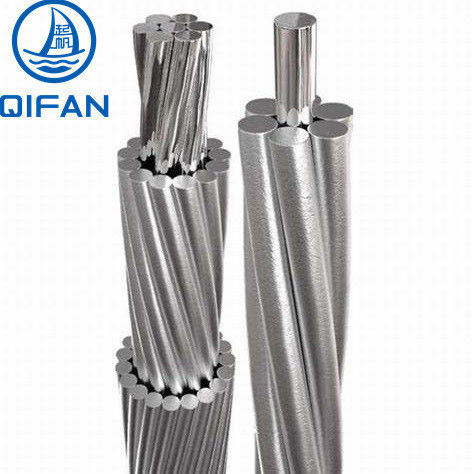

77.47mcm AAAC Aluminium alloy conductor 6201 Ames factory sale
Application:
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength
aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy
gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR.
SPECIFICATIONS
Huatong AAAC-6201-T81 bare conductor meets or exceeds the following ASTM specifications:
• B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
• B399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
CONSTRUCTION
Aluminum-alloy 6201-T81 wires, concentrically stranded. ASTM standards
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
| Name | Short name | Standard |
| All aluminum conductor | AAC | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| Aluminum conductor steel reinforced | ACSR | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| All aluminum alloy conductor | AAAC | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| Galvanized steel wire | GSW | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
Main products: 220kv and below power cables, rubber sheathed cables, photovoltaic wires, photovoltaic special cables, control cables, computer cables, steel core aluminum stranded wires, pre-branch cables, low voltage halogen-free environmentally friendly cables, coal mining cables, fluorosilicone insulation High temperature resistant cables, shield cables, cables for ship electrical equipment, photoelectric composite cables, high-strength towing cables, cables for photovoltaic systems, cables for rail transit vehicles with AC rated voltage 3kv and below, local area network cables, inverter cables, radio frequency cables , nuclear power plant cables, port machinery cables, mineral insulated cables, submarine cables and more than 100 varieties
1.30 years production experience
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
The 77.47MCM AAAC (All Aluminum Alloy Conductor) Aluminium Alloy Conductor 6201 is a specific type of aluminum conductor commonly used in electrical power transmission and distribution systems. It has a cross-sectional area of 77.47 thousand circular mils (MCM), indicating its capacity to handle moderate electrical currents.
Here's some information about this conductor:
AAAC Aluminium Alloy Conductor: Like the previous descriptions, this conductor is made of all aluminum alloy wires. The use of aluminum alloy provides enhanced mechanical strength and improved electrical conductivity compared to standard aluminum conductors.
6201 Alloy: The conductor is made from the 6201 aluminum alloy, which is known for its optimal balance of strength and conductivity. The 6201 alloy primarily consists of aluminum, with additional elements added to enhance its mechanical and electrical properties
