300/500V 450/750V Heavy Duty Rubber Insulated Flexible Cable YCW H07RN-F H05RN-F CE Certificate Cable Wire
Rubber Cable Working Conditions:
1.Rated voltage : 300/500V(YZ type), 450/750V(YC YCW H07RN-F type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
ZR type cables have fire-retardant character.
Type and voltage |
Description |
Application |
Test voltage (5min) |
YG-300/500V |
Heat-resisting silicon rubber insulated cable |
Used for high-temperature site |
2.0 |
60IEC53(YZ)300/500V |
Rubber flexible cable |
Used for various movable electrical
equipment and tools |
6024IEC57(YZW)300/500V |
CR-jacketed flexible cable |
60245IEC66(YCW)450/750V |
Heavy-duty rubber flexible cable |
Used for various movable electrical
equipment and
can withstand larger mechanical forces |
2.5 |
60245IEC701(YTB)300/500V
60245IEC74(YT)
300/500V
60245IEC(YTF)300/500V |
Braided lift cable high-strength rubber lift cable
PCP rubber lift cable |
Used for various elevators |
2.0 |
60245IEC81(YH) |
Common rubber sheathed cable
for electric welding machine |
Used for electric welding machine |
1.0 |
60245IEC82(YHF) |
PCP sheathed cable for electric welding machine |
YQ,YQW300/500V |
Light-duty rubber flexible cable |
Used light duty movable electrical
equipment and tools |
2.0 |
YZ,YZW300/500V |
Medium-duty rubber flexible cable |
YZB,YZWB 300/500V |
Medium-duty rubber flat flexible cable |
YC,YCW450/750V |
Heavy-duty rubber flexible cable |
Used for various movable electrical equipment
and can withstand larger mechanical forces |
2.5 |
YHD 300/500V |
Open country rubber insulated power cable |
Used for various movable electrical equipment
and tools in the open country |
Rubber Cable Specification Range:
|
Type
|
Rated Voltage
|
Core Number
|
Nominal Cross-section Area
|
|
YQ,YQW
|
300/300
|
2.3
|
0.3~0.5
|
|
YZ,YZW
|
300/500
|
2.3.4.5.3+1
|
1.5~6
|
|
YC
|
450/750
|
1
2
3
4
5
|
1.5~240
1.5~95
1.5~150
1.5~25
|

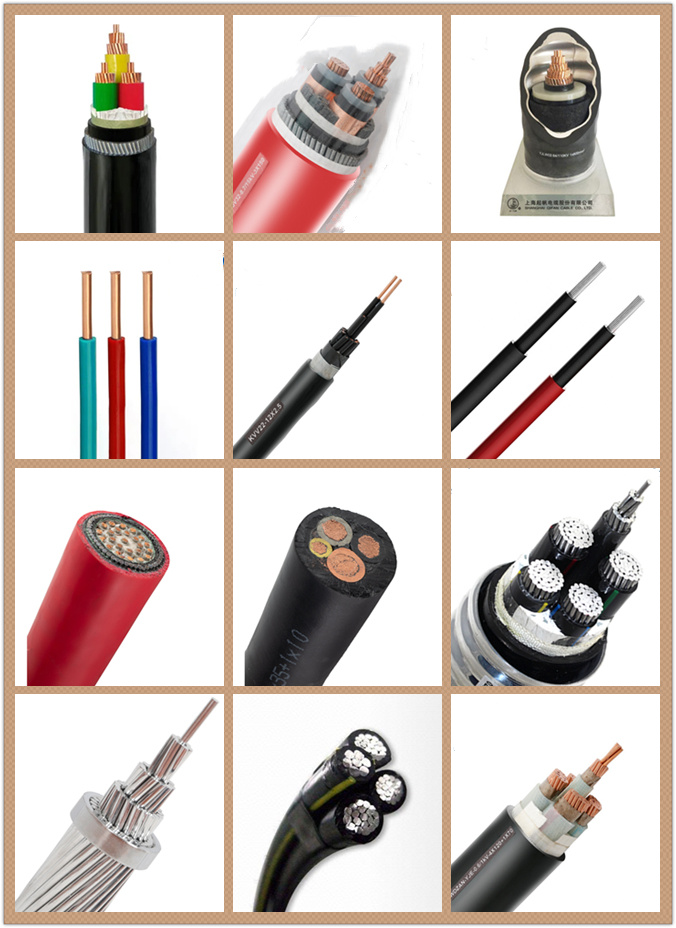

Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional supplier of global intelligent building cable infrastructure products and services, and a trustworthy enterprise dedicated to global power development.
