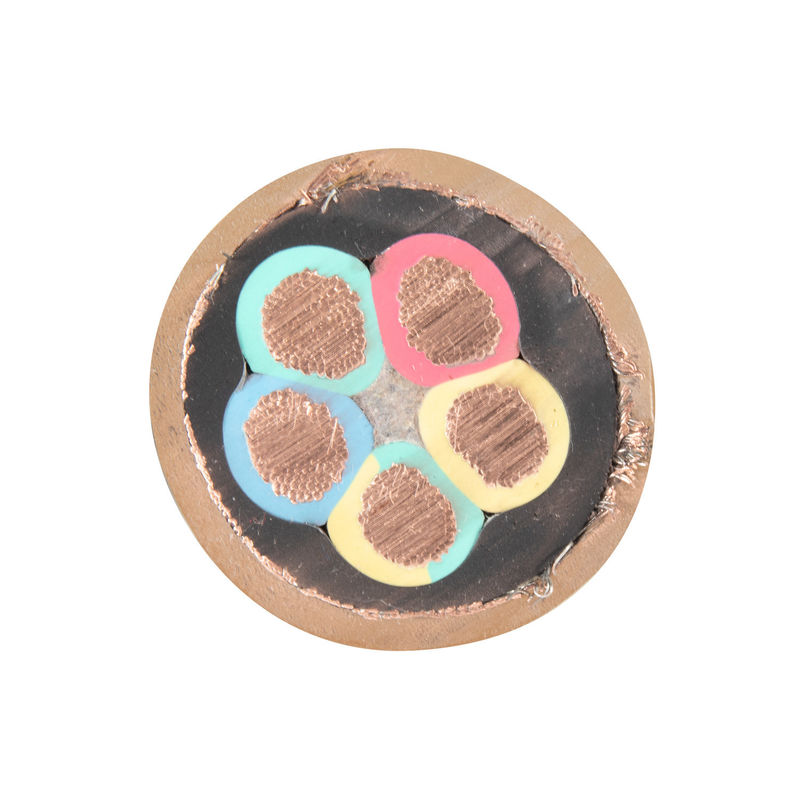

Silicone Rubber Insulated Cable 35mm2 50mm2 Copper Rubber Welding Wire For Industrial

Name: Silicone Rubber Insulated Cable 35mm2 50mm2 Copper Rubber Welding Wire For Industrial
Brand: Qifan
SKU: YHF YH
Price: 3 USD
Availability: InStock
Rating: 4.8 (168 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO9001, CE, CCC

Model Number: YHF YH

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                10mm2 silicone rubber insulated cable, 300mm2 silicone rubber insulated cable, 50mm2 insulated copper wire


Model NO.:	YHF YH	Material Shape:	Round Wire
Range Of Application:	Machine	Brand:	QIFAN
Transport Package:	Roll Drum	Specification:	10-300
Trademark:	QIFAN	Origin:	China
HS Code:	8544492100	Supply Ability:	50000km/Month
Type:	Insulated	Conductor Type:	Flexible
Application:	Welding Machine	Conductor Material:	Flexible Copper
Sheath Material:	Rubber	Insulation Material:	Rubber
Samples:	US$ 0/Piece 1 Piece(Min.Order) \| Request Sample

Model NO.:	YHF YH
Material Shape:	Round Wire
Range Of Application:	Machine
Brand:	QIFAN
Transport Package:	Roll Drum
Specification:	10-300
Trademark:	QIFAN
Origin:	China
HS Code:	8544492100
Supply Ability:	50000km/Month
Type:	Insulated
Conductor Type:	Flexible
Application:	Welding Machine
Conductor Material:	Flexible Copper
Sheath Material:	Rubber
Insulation Material:	Rubber
Samples:	US$ 0/Piece 1 Piece(Min.Order) \| Request Sample

Silicone Rubber Insulated Cable 35mm2 50mm2 Copper Rubber Welding Wire For Industrial

Product Description

Flexible Rubber Welding Wire Cable 35mm2 50mm2 70mm2 Copper for Industrial
Welding Cable
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound,

Technical data
Voltage Rating
100V
Working temperature:65ºC
Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter

Model	Name	Main applications	Working temperature of core ≤0C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153
16	513/0.20	2.0	9.2	11.5	1.16	218	230
25	798/0.20	2.0	10.5	13.0	0.758	316	331
35	1121/0.20	2.0	11.5	14.5	0.536	426	439
50	1596/0.20	2.2	13.5	17.0	0.379	592	610
70	2214/0.20	2.4	15.0	19.5	0.268	790	817
95	2997/0.20	2.6	17.0	22.0	0.198	1066	1102
120	1702/0.30	2.8	19.0	24.0	0.161	1348	1392
150	2135/0.30	3.0	21.0	27.0	0.129	1678	1698
185	1443/0.40	3.2	22.0	29.0	0.106	1983	2020
