Submarine Power Cable Factory Hot Sales Single Core 800mm2 XLPE Insulated AC DC 30kv 66kv 132kv Submarine Cable

Name: Submarine Power Cable Factory Hot Sales Single Core 800mm2 XLPE Insulated AC DC 30kv 66kv 132kv Submarine Cable
Brand: Qifan
SKU: Annealed Soft Copper
Price: 3 USD
Availability: InStock
Rating: 4.9 (173 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO, CCC, CE, CNAS

Model Number: Annealed Soft Copper

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:

Wire Core Material:	Annealed Soft Copper	Model:	Submarine Cable
Brand:	Qifan	Engineer:	260
Vcv Brand:	Maillefer / Troester	Vcv Original:	German And Finnish
Staff:	2760	Standard:	IEC 60840 Cigre 496, Cigre 623
Transport Package:	Ship Loading	Specification:	150-1600mm2
Trademark:	QIFAN	Origin:	China
HS Code:	8544601200	Supply Ability:	5000km/Year
Application:	Construction, Underground, Industrial, Power Station, Telecommunication, Submarine,Under Sea	Voltage:	High Voltage Cable
Current:	DC & AC	Insulation Material:	XLPE
Sheath Material:	Out Service	Material Shape:	Round Wire

Wire Core Material:	Annealed Soft Copper
Model:	Submarine Cable
Brand:	Qifan
Engineer:	260
Vcv Brand:	Maillefer / Troester
Vcv Original:	German And Finnish
Staff:	2760
Standard:	IEC 60840 Cigre 496, Cigre 623
Transport Package:	Ship Loading
Specification:	150-1600mm2
Trademark:	QIFAN
Origin:	China
HS Code:	8544601200
Supply Ability:	5000km/Year
Application:	Construction, Underground, Industrial, Power Station, Telecommunication, Submarine,Under Sea
Voltage:	High Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Sheath Material:	Out Service
Material Shape:	Round Wire

Submarine Power Cable Factory Hot Sales Single Core 800mm2 XLPE Insulated AC DC 30kv 66kv 132kv Submarine Cable

Product Description

Copper conductor XLPE Insulated High Voltage AC 30kV 35 kV 66kV 132kV Submarine Cable

Product Description

Submarine Cable

Submarine power cable is a major transmission cable for carrying electric power below the surface of the water. It is also possible to use submarine power cables beneath fresh water.

Yichang Qifan Cable Co.,ltd.,a wholly-owned subsidiary of Shanghai Qifan Cable.,ltd. Was established on October 2020. with a registered capital of RMB200 million, The company is close to the world-famous Three Gorges Power Station, It currently has about 300 employees, The plant covers an area of about 450,000 square meters and has an annual production capacity of more than RMB 3 billion, It has a 400-meter-long submarine cable transport plank road leading to the Yangtze River docks.

Yichang Qifan Cable has a VCV line with tower height measuring more than 180 meters and a series of advanced high-voltage cable and submarine cable production equipment capable of manufacturing onshore and submarine power cable of 500KV and below, They include
√ Two Finnish MAILLEFER high-voltage cable VCV production lines
√ A German TROESTER high-voltage cable VCV production line
√ Two Finnish MAILLEFER medium-voltage cable CCV production Lines,
√A French POURTIER frame type wire standing machine and a drum twister machine

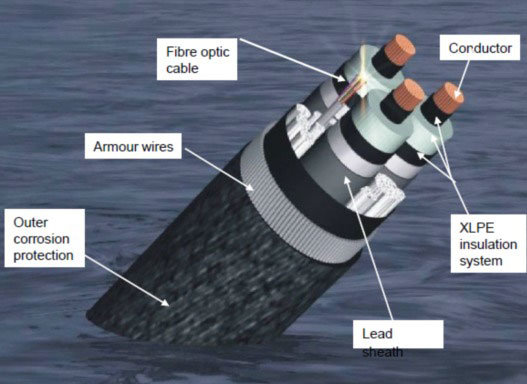

Construction

1. Conductor: Copper Conductor
2. Conductor Screen: Semi-conductive materials extruding layer
3. Insulation: XLPE
4. Insulation Screen: Semi-conductive materials extruding layer
5. Waterproof Layer: semi-conductive waterproof strip
6. Metal Screen: Lead Sheath
7. Sheath: PE
8. Fibre-optic Element: Fibre optic cable.
9. Separator: Binder tapes
10. Lapped inner layer: geled fabric and bitumen
11. Amouring: Galvanized steel wires filled with bitumen compound.
12. Lapped inner layer
13. Galvanized steel wires filled with bitumen compound.
14. Serving

Reference Standards
CIGRE Recommendations: CIGRE 496, CIGRE 623.
Types & Purposes
For offshore wind farm
-Export cable to transport the total generated power from offshore substation to onshore substation
For interconnection
-Interconnecting grids of countries
-Power supply from mainland to isolated islands

Factory Hot Sales Single Core 800mm2 XLPE Insulated AC DC 30kv 66kv 132kv Submarine Cable

Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.

Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.

Fang Yu (Shanghai) products have passed China Compulsory Certification (CCC), coal mine product safety mark certification, China Classification Society certification, Telus certification, German TUV certification, European Union CE certification, and United States UL certification.
