Submarine Cable
Submarine power cable is a major transmission cable for carrying electric power below the surface of the water. It is also possible to use submarine power cables beneath fresh water.
Yichang Qifan Cable Co.,ltd.,a wholly-owned subsidiary of Shanghai Qifan Cable.,ltd. Was established on October 2020. with a registered capital of RMB200 million, The company is close to the world-famous Three Gorges Power Station, It currently has about 300 employees, The plant covers an area of about 450,000 square meters and has an annual production capacity of more than RMB 3 billion, It has a 400-meter-long submarine cable transport plank road leading to the Yangtze River docks.
Yichang Qifan Cable has a VCV line with tower height measuring more than 180 meters and a series of advanced high-voltage cable and submarine cable production equipment capable of manufacturing onshore and submarine power cable of 500KV and below, They include
√ Two Finnish MAILLEFER high-voltage cable VCV production lines
√ A German TROESTER high-voltage cable VCV production line
√ Two Finnish MAILLEFER medium-voltage cable CCV production Lines,
√A French POURTIER frame type wire standing machine and a drum twister machine

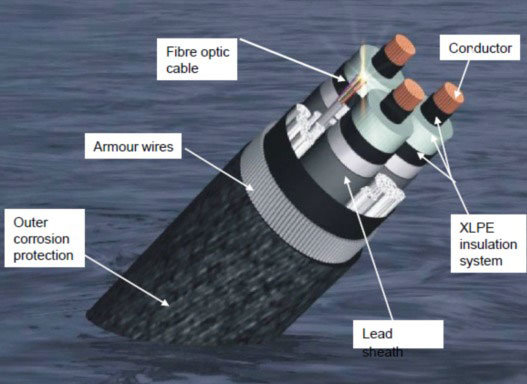

Construction
1. Conductor: Copper Conductor
2. Conductor Screen: Semi-conductive materials extruding layer
3. Insulation: XLPE
4. Insulation Screen: Semi-conductive materials extruding layer
5. Waterproof Layer: semi-conductive waterproof strip
6. Metal Screen: Lead Sheath
7. Sheath: PE
8. Fibre-optic Element: Fibre optic cable.
9. Separator: Binder tapes
10. Lapped inner layer: geled fabric and bitumen
11. Amouring: Galvanized steel wires filled with bitumen compound.
12. Lapped inner layer
13. Galvanized steel wires filled with bitumen compound.
14. Serving
Reference Standards
CIGRE Recommendations: CIGRE 496, CIGRE 623.
Types & Purposes
For offshore wind farm
-Export cable to transport the total generated power from offshore substation to onshore substation
For interconnection
-Interconnecting grids of countries
-Power supply from mainland to isolated islands
Shanghai Qifan Cable Co., Ltd. founded in 1994, has been specialized in R&D and manufacturing of electric wires and cables for more than 20 years, and it has advanced production and testing equipment.
Qifan Cable has ability in producing many varieties of cables, such as High Voltage cables, Medium Voltage cables, Low Voltage cables, Control cables, Instrument cables, Building wires, Rubber cables etc. Qifan Cable has sold its products to over 30 countries and regions in Asia, Europe, Oceania, America and Africa. As a result, they are widely used in such industries as water conservancy, electricity, metallurgy, petrochemical, railway, transportation, communication, construction, urban, infrastructure construction, etc.
Since its establishment, Qifan Cable has abided by the operation principle of quality foremost. It took the lead in passing ISO 9001:2000 quality system certification in 2006 and ISO 14001:2004 environmental management system certification.
Qifan Cable-Make pioneering efforts and forge ahead!
Submarine Cable: The cable is specifically designed for underwater or submarine applications. Submarine cables are used for power transmission between land-based power stations and offshore installations or between different land masses.
Submarine cables are used in various applications, including interconnecting power grids, offshore wind farms, and undersea power distribution. They are designed to withstand the harsh conditions of underwater environments, including water pressure, temperature variations, and potential mechanical stresses.
