800mm2 XLPE Insulated Welding Corrugated Aluminium-Sheathing Flame-Retardance PVC/PE Sheathed Power Cable

127/220KV 800mm2  xlpe insulated welding corrugated aluminium-sheathing flame-retardance PVC/PE sheathed power cable

HV&EHV Cable And Cable System Standards

Qifan´s HV&EHV cable systems are designed to meet requirements in international and/or national standards. Some of these are listed below.

IEC

HV&EHV cable systems specified according to IEC(International Electrotechnical Commission) are among many other standards accepted. Some frequently used standards are:
IEC 60228
Conductors of insulated cables.
IEC 60287
Electric cables - Calculation of the current rating.
IEC 60332
Tests on electric cables under fire conditions.
IEC 60840
Power cables with extruded insulation and their accessories for rated voltage above 30 kV (Um=36 kV) up to 150 kV(Um=170 kV). Test methods and requirements.
IEC 60853
Calculation of the cyclic and emergency current rating of cables.
IEC 61443
Short-circuit temperature limits of electric cables with rated voltages above 30 kV (Um=36 kV)
IEC 62067
Power cables with extruded insulation and their accessories for rated voltage above 150 kV (Um=170 kV) up to 500 kV(Um=550 kV). Test methods and requirements

CENELEC

In Europe, cable standards are issued by CENELEC.(European Committee for Electrotechnical Standardization.) They are as a rule implementations of the IEC specifications. Special features in design may occur depending on national conditions.
HD 632
Power cables with extruded insulation and their accessories for rated voltage above 36 kV (Um=42 kV) up to 150 kV (Um=170 kV)."

ICEA/ANSI/AEIC

North America cables are often specified according to ICEA /ANSI/AEIC
S-97-682
Standard for utility shielded power cables rated 5-46 kV.
AEIC CS7-93
Specifications for crosslinked polyethylene insulated shielded power cables rated 69 through 138kV
ANSI/ICEA S-108-720-2004
Standard for extruded insulated power cables rated above 46 through 345 kV.

ISO Standards

Qifan possesses well developed systems for quality and environmental management which comply with the requirements of ISO 9001 and ISO 14001, giving satisfaction to our customers.

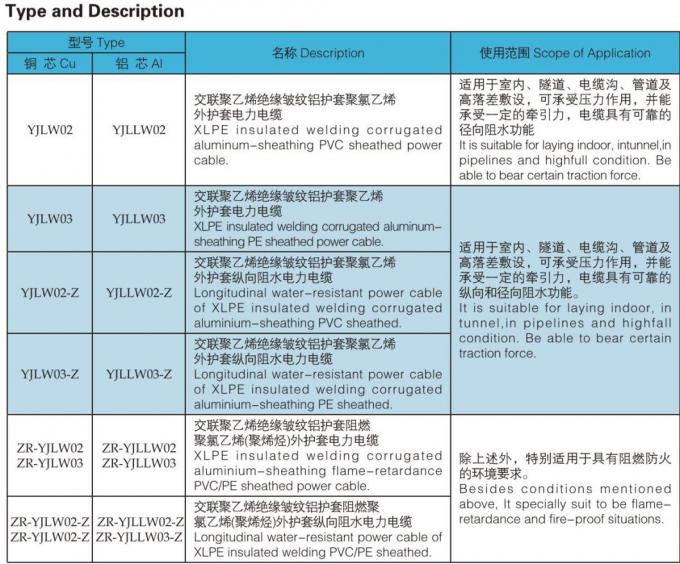

Model and Name of product


Model		Name
Copper core	Aluminium core
YJLW02	YJLLW02	XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PCV sheath power cable
YJLW03	YJLLW03	XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PE sheath power cable
YJLW02-Z	YJLLW02-Z	XLPE insulated corrugated aluminium sheath or welding corrugated aluuminium sheath PVC sheath longitudinally water blocking power cable
YJLW03-Z	YJLLW03-Z	XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PVC sheath longitudinally water blocking power cable







------Our Feature------

1. Imported equipment with experienced technical team

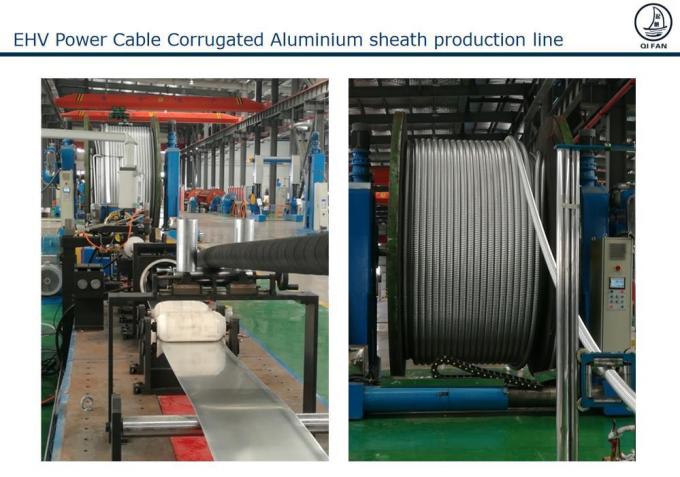

   The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
2. Complete certification system
   Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3. Perfect Production system
   Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4. Perfect Sales service system
   Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.

Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
