High Voltage Power Cables (PVC) Underground Power Cable

Name: High Voltage Power Cables (PVC) Underground Power Cable
Brand: Qifan
SKU: Qifan
Price: 3 USD
Availability: InStock
Rating: 5 (112 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO, CCC, CE, RoHS, TUV

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                64kv underground high voltage cable, 76kv underground high voltage cable, 150kv underground copper wire


Model NO.:	YJLW02	Wire Core Material:	Pure Annealed Soft Copper
Model:	Yjlw02	Brand:	Qifan
Flame Resistant:	IEC 60332	QC:	206
Staff:	3048	Standard:	IEC 60840 IEC 62067
No. Of Core:	Single Core	Transport Package:	Drum
Specification:	240-2500mm2	Trademark:	QIFAN
Origin:	China	HS Code:	8544601300
Supply Ability:	500km/Month	Application:	Construction, Underground, Industrial, Power Station
Voltage:	High Voltage Cable	Current:	DC & AC
Insulation Material:	XLPE	Sheath Material:	PVC HDPE
Material Shape:	Round Wire	Samples:	US$ 0/Meter 1 Meter(Min.Order) \| Request Sample

Model NO.:	YJLW02
Wire Core Material:	Pure Annealed Soft Copper
Model:	Yjlw02
Brand:	Qifan
Flame Resistant:	IEC 60332
QC:	206
Staff:	3048
Standard:	IEC 60840 IEC 62067
No. Of Core:	Single Core
Transport Package:	Drum
Specification:	240-2500mm2
Trademark:	QIFAN
Origin:	China
HS Code:	8544601300
Supply Ability:	500km/Month
Application:	Construction, Underground, Industrial, Power Station
Voltage:	High Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Sheath Material:	PVC HDPE
Material Shape:	Round Wire
Samples:	US$ 0/Meter 1 Meter(Min.Order) \| Request Sample

High Voltage Power Cables (PVC) Underground Power Cable

Product Description

38/66kV 64/110kV 76/132kV 87/150kV 127/220kV XLPE Insulated Underground Power Cable

Voltage grade is up to 220kv, cross-section area can be up to 2500 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.

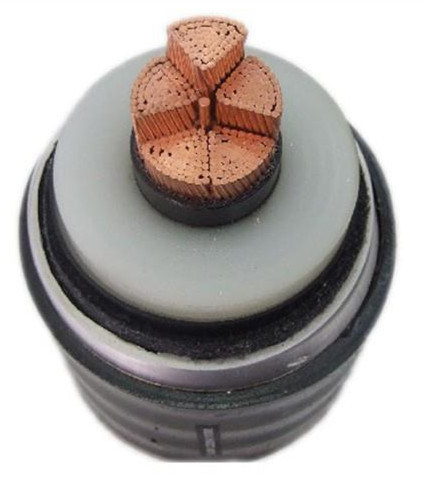

2. Brief Construction:
Single core
Copper or aluminium conductor
XLPE insulation
Corugation aluminum sheath
PVC or PE sheath

3. Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force

4. MANUFACTURING FEATURES
Conductor
The conductor shall be round compact stranded copper or aluminum wires. The resistance of each conductor at 20ºC shall be in accordance with IEC 60228 standard. The surface of the conductor shall be clean and free from any foreign particles, which may contaminate the insulation or cause high electrical field stress in the conductor screen.
Conductor screen, Insulation and Insulation screen
Extrusion of conductor screen, insulation and insulation screen shall be by single pass, triple extrusion method. Conductor screen, XLPE main insulation and insulation screen shall be produced by triple extrusion and dry curing.
Conductor screen shall consist of semi-conducting tapes applied over the conductor and a continuous layer of extruded semiconducting XLPE compound covering the entire surface area of the conductor and firmly bonded to the inner surface of the insulation.
The insulation shall be XLPE and shall be applied by extrusion and cross-linked to form a compact and homogeneous layer in accordance with the Standards specified. The insulation material shall be of Super Clean polyethylene mixture suitable for cross-linking (XLPE).
Insulation screen shall consist of a layer of extruded non-strippable semi-conducting thermosetting compound.

After triple extrusion, the insulated cores shall be degassed to remove the by-product in the core from the cross-linking process.

Bedding
Semi-conducting water-blocking tapes (swellable tapes) over the insulation screen shall be applied to prevent longitudinal water penetration between insulation screening and metallic sheath. The swellable tape shall cover the entire surface area of the insulation screen.

Metallic sheath
Corrugation Aluminum sheath shall be applied over the semi-conducting water blocking tape to accommodate the required radical water tightness and protect the insulation core.

Outer sheath
The outer-sheath shall be of an extruded layer of black color PVC.It shall be highly chemical resistance and withstand the mechanical force during fabrication, transit,installation and operation.
Outer conductive layer
A coating of Graphite shall be applied over the over sheath to carry out D.C. Voltage Test.

1. The products are mainly complying with IEC 60840 IEC 62067 standard, also can be produced according to OEM requirements and other standards, such as bs standard, DIN standard, ASTM standard, etc.
38/66kv 64/110kv 76/132kv 87/150kv 127/220kv Cu/XLPE/CAS/HDPE (PVC) Underground Power Cable

38/66kv 64/110kv 76/132kv 87/150kv 127/220kv Cu/XLPE/CAS/HDPE (PVC) Underground Power Cable
