UL 1072 Standard 133% Insulation Primary Urd Cable 15kv-35kv
APPLICATIONS
URD - TRXLPE XLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
SPECIFICATIONS
TRXLPE XLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSI ICEA S-94-649
- UL 1072
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

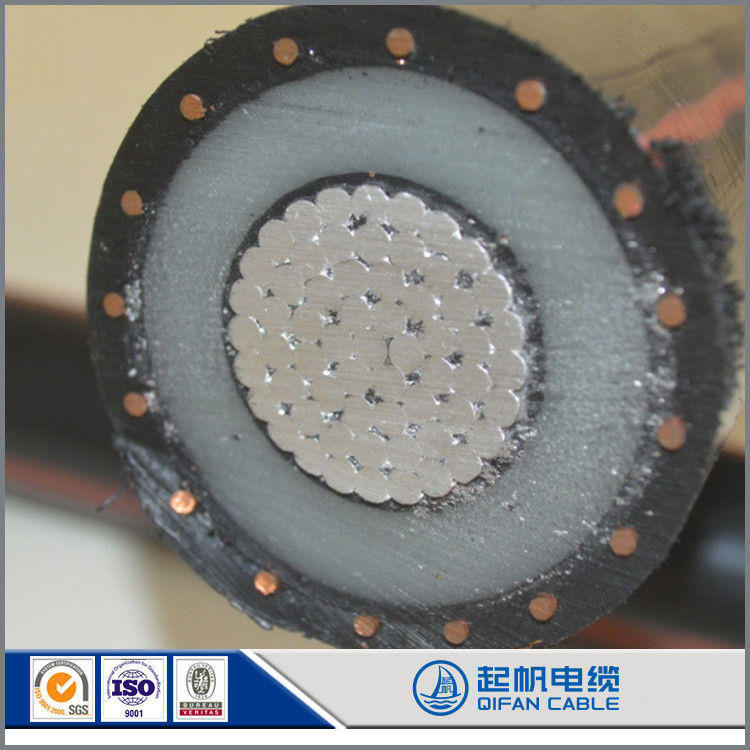

CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLPE (Tree Retardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encap Insulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request.
15kV 133% IL Data sheet:
| Condctor |
Copper Neutral (1/3) |
diameter(inch) |
|
Weight (Pounds) |
| AWG orMCM |
Stranding |
Number of
Wires |
Size AWG
(Solid) |
Conductor |
Over |
Over
Insul. |
Over Neutral |
Over |
Conductor |
Concentric |
Total No |
Total With Jacket |
| Insulation |
Shield |
Wires |
Jkt. |
Neutral |
Jacket |
| 1/0 |
19 wire |
9 |
14 |
0.37 |
1.12 |
1.23 |
1.35 |
1.46 |
325.8 |
119.2 |
659 |
4926 |
| 2/0 |
19 wire |
11 |
14 |
0.42 |
1.17 |
1.27 |
1.40 |
1.50 |
410.9 |
146.3 |
775 |
808 |
| 3/0 |
19 wire |
14 |
14 |
0.47 |
1.22 |
1.32 |
1.48 |
1.59 |
518.1 |
185.9 |
900 |
923 |
| 4/0 |
19 wire |
11 |
12 |
0.53 |
1.28 |
1.38 |
1.54 |
1.71 |
653.3 |
228.0 |
1110 |
1055 |
| 250 |
37 wire |
13 |
12 |
0.57 |
1.33 |
1.44 |
1.64 |
1.81 |
771.9 |
282.1 |
1330 |
1292 |
| 350 |
37 wire |
12 |
10 |
0.68 |
1.44 |
1.54 |
1.70 |
1.89 |
1081 |
398.0 |
1633 |
1519 |
| 500 |
37 wire |
17 |
10 |
0.81 |
1.57 |
1.72 |
1.88 |
2.04 |
1544 |
543.5 |
2002 |
1886 |
| 750 |
61 wire |
25 |
10 |
0.99 |
1.76 |
1.93 |
2.11 |
2.28 |
2316 |
801.5 |
2650 |
2289 |
| 1000 |
61 wire |
33 |
10 |
1.14 |
1.92 |
2.06 |
2.27 |
2.43 |
3088 |
1058 |
3847 |
2960 |
