UL 1072 Standard 133% Insulation Primary Urd Cable 15kv 25kv 35kv

Name: UL 1072 Standard 133% Insulation Primary Urd Cable 15kv 25kv 35kv
Brand: Qifan
SKU: Qifan
Price: 3 USD
Availability: InStock
Rating: 5 (109 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO, CCC, CE, RoHS

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	YJSV YJLSV	Wire Core Material:	Copper Or Aluminum
Model:	Yjsv Yjlsv Urd Concentric	Brand:	Qifan
QC:	200	Warranty:	30 Year
Color:	Black With Red Stripe	Structure:	Concentric
Standard:	UL 1072 Icea S-94-649	Transport Package:	Drum Wooden Drum Steel Drum
Specification:	16-800mm2 4AWG-1000MCM	Trademark:	QIFAN
Origin:	China	HS Code:	8544492100
Supply Ability:	50000km/Month	Application:	Construction, Underground, Industrial, Power Station
Voltage:	Low And Medium Voltage Cable	Current:	AC Cable
Insulation Material:	Tr-XLPE XLPE	Sheath Material:	XLPE PVC
Material Shape:	Round Wire	Samples:	US$ 0/Piece 1 Piece(Min.Order) \| Request Sample

Model NO.:	YJSV YJLSV
Wire Core Material:	Copper Or Aluminum
Model:	Yjsv Yjlsv Urd Concentric
Brand:	Qifan
QC:	200
Warranty:	30 Year
Color:	Black With Red Stripe
Structure:	Concentric
Standard:	UL 1072 Icea S-94-649
Transport Package:	Drum Wooden Drum Steel Drum
Specification:	16-800mm2 4AWG-1000MCM
Trademark:	QIFAN
Origin:	China
HS Code:	8544492100
Supply Ability:	50000km/Month
Application:	Construction, Underground, Industrial, Power Station
Voltage:	Low And Medium Voltage Cable
Current:	AC Cable
Insulation Material:	Tr-XLPE XLPE
Sheath Material:	XLPE PVC
Material Shape:	Round Wire
Samples:	US$ 0/Piece 1 Piece(Min.Order) \| Request Sample

UL 1072 Standard 133% Insulation Primary Urd Cable 15kv 25kv 35kv

Product Description

UL 1072 Standard 133% Insulation Primary Urd Cable 15kv-35kv

APPLICATIONS
URD - TRXLPE XLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
SPECIFICATIONS
TRXLPE XLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSI ICEA S-94-649
- UL 1072
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

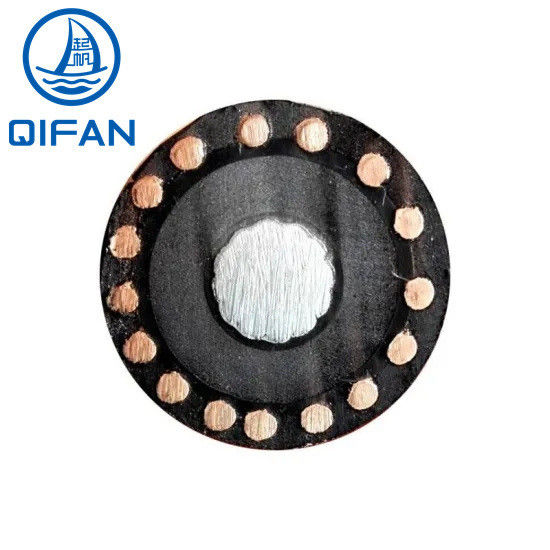

CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLPE (Tree Retardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encap Insulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request.

15kV 133% IL Data sheet:

Condctor		Copper Neutral (1/3)		diameter(inch)						Weight (Pounds)
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Over	Over Insul.	Over Neutral	Over	Conductor	Concentric	Total No	Total With Jacket
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Insulation	Shield	Wires	Jkt.	Conductor	Neutral	Jacket	Total With Jacket
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46	325.8	119.2	659	4926
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50	410.9	146.3	775	808
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59	518.1	185.9	900	923
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71	653.3	228.0	1110	1055
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81	771.9	282.1	1330	1292
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89	1081	398.0	1633	1519
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04	1544	543.5	2002	1886
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28	2316	801.5	2650	2289
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43	3088	1058	3847	2960

Qifan cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,type DG,PV wire,AC Cable,SOOW,Welding cable and so on

------Our Feature------

Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional supplier of global intelligent building cable infrastructure products and services, and a trustworthy enterprise dedicated to global power development.
