15kv - 35kv 4AWG Covered Multi-Layer Tree Wire Hot Sale
The conductor material can be AAC AAAC ACSR etc.

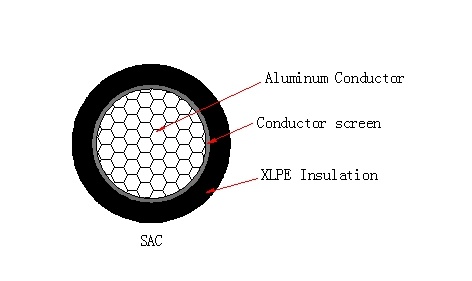

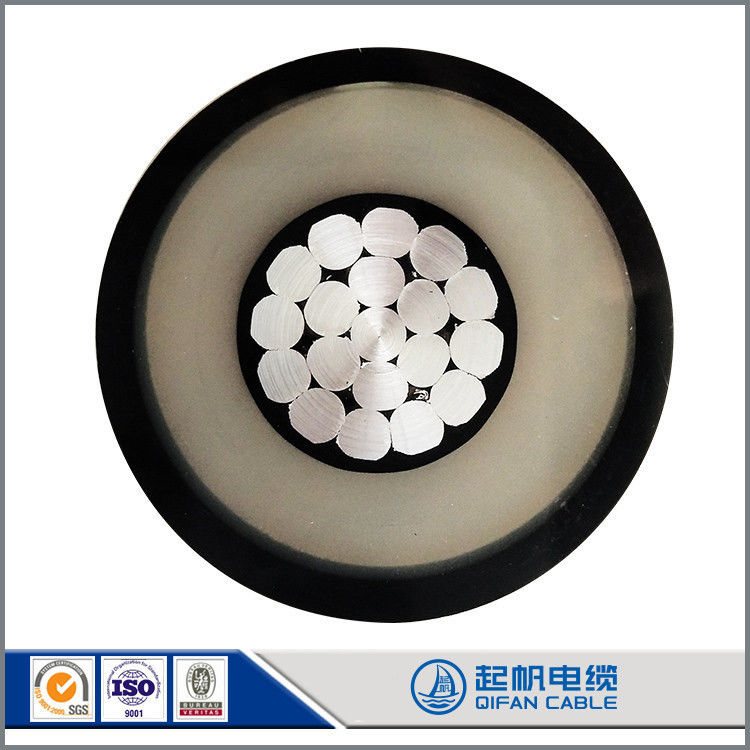

XLPE covered cable is constituted by a compact round conductor, composed by aluminum strands, blocked or not, with
a cross-linked polyethylene (XLPE) covered black or gray color.

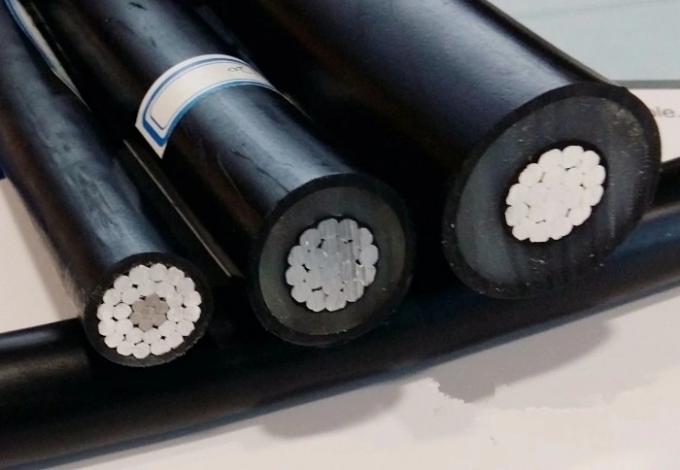

The XLPE covered aluminum cable- 25kV Voltage Class is constituted by a compact round conductor, composed by alu
minum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special
characteristics to be resistant against electric tracking and UV-rays.
As XLPE is a thermoses material, it enables operation up to 90°C continuously implying in higher capacity when compar
ed to the thermoplastic materials.
The main application for covered aluminum cables is on compact overhead, primary power distribution, medium-voltage
networks located in urban and wooded areas. These cables are an excellent technical and economic option for compan
ies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.
| Cross section |
No. of wires |
Conductor dia. |
Overall Diameter |
Minimum breaking load |
Approx. weight |
Max. DC-resistance at 20°C |
Ampacity 90°C |
| [mm²] |
|
[mm] |
[mm] |
[kgf] |
[kg/km] |
[Ohm/km] |
[A] |
| 35 |
7 |
7.1 |
15.7 |
464 |
235 |
0.868 |
186 |
| 50 |
7 |
8.2 |
16.8 |
663 |
305 |
0.641 |
224 |
| 70 |
19 |
9.7 |
18.3 |
928 |
370 |
0.443 |
280 |
| 95 |
19 |
11.5 |
20.1 |
1259 |
460 |
0.32 |
343 |
| 120 |
19 |
12.9 |
21.5 |
1591 |
560 |
0.253 |
397 |
| 150 |
19 |
14.2 |
22.8 |
1988 |
650 |
0.206 |
450 |
| 185 |
37 |
16.2 |
24.8 |
2452 |
770 |
0.164 |
519 |
| 240 |
37 |
18.4 |
27 |
3182 |
960 |
0.125 |
617 |
| 300 |
37 |
20.7 |
29.3 |
3977 |
1155 |
0.1 |
712 |
Technical Specification:
| Aerial Spacer Cable 20 kv |
| Crossectional |
Conductor Construction |
Conductor Dia. |
Thickness |
Approx. Overal dia |
Electical Resistance |
Calc. Breaking Force |
Air Flow Capacity at 20ºC |
Approx. Conductor Weight |
| Semi Conductor |
Insulation |
Jacket |
| Mm2 |
Nxmm |
mm |
mm |
mm |
mm |
mm |
Ω/km |
N |
A |
Kg/km |
| 70 |
12×2.77 |
10 |
0.4 |
3.2 |
3.2 |
23.5 |
0.443 |
10.420 |
229 |
509 |
| 120 |
15×3.30 |
13.2 |
0.4 |
3.2 |
3.2 |
26.7 |
0.253 |
18.518 |
321 |
729 |
| 150 |
15×3.66 |
14.8 |
0.4 |
3.2 |
3.2 |
28.4 |
0.206 |
22.457 |
371 |
826 |
| 185 |
30×2.88 |
16.2 |
0.4 |
3.2 |
3.2 |
29.7 |
0.164 |
28.974 |
429 |
959 |
| Aerial Spacer Cable 33 kv |
| 70 |
12×2.77 |
10 |
0.4 |
4.5 |
3.2 |
26.0 |
0.443 |
10.420 |
227 |
630 |
| 120 |
15×3.30 |
13.2 |
0.4 |
4.5 |
3.2 |
29.3 |
0.253 |
18.518 |
318 |
850 |
| 150 |
15×3.66 |
14.8 |
0.4 |
4.5 |
3.2 |
30.8 |
0.206 |
22.457 |
367 |
960 |
| 185 |
30×2.88 |
16.2 |
0.4 |
4.5 |
3.2 |
32.2 |
0.164 |
28.974 |
425 |
1100 |
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system

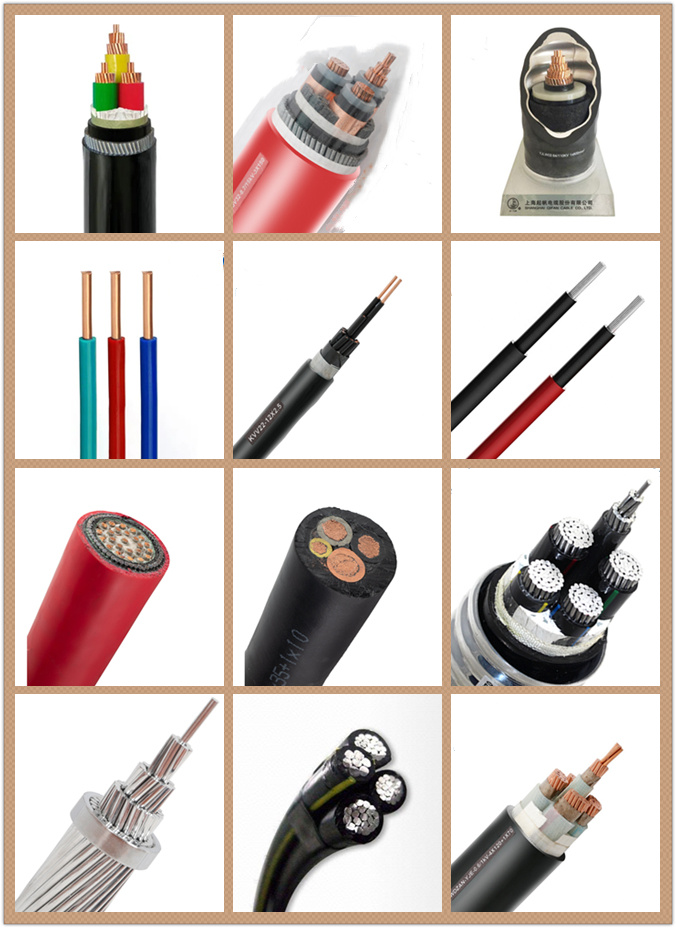

Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
