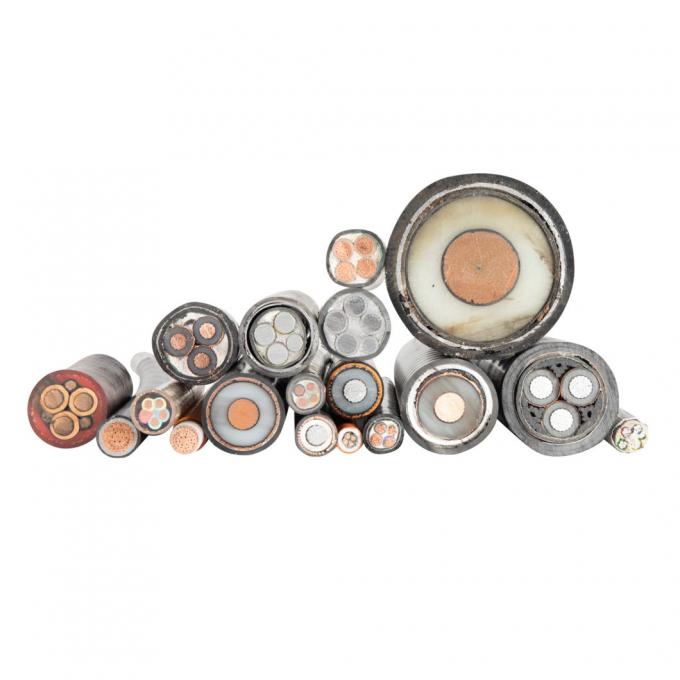

IEC60502 BS7835 BS6622 VDE N2XSERY YJV32 11kV 20kV 33kV Copper XLPE Insulated SWA STA Armoured Outdoor Energy Power Cable
1 Product Standard
This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS 6722, DIN, ICEA standard as customer request.
2 Application
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv.
3 Operating characteristics
- Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
- Max.admissible operating temperature of the conductor:90ºC.
- Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration)
- The ambient temperature under installation should not below 0ºC.
- The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a multi-core cable should not less than 15 times of the cable diameter.
4 Table of the voltage, cores and cross-section
| Item |
Category A ,B |
3.6/6kV |
6/10kV |
8.7/15kV |
12/20kV |
18/30kV |
21/35kV |
| Category A ,B |
6/6kV |
8.7/10kV |
12/15kV |
18/20kV |
- |
26/35kV |
| Single core |
mm2 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
| Three core |
mm2 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
5 Type and Name
| Type |
Designation |
Applications |
| YJV |
Copper conductor,XLPE insulated,PVC sheathed power cable |
For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV |
Aluminum conductor,XLPE insulated,PVC sheathed power cable |
| YJY |
Copper conductor, XLPE insulated,PE sheathed power cable |
| YJLY |
Aluminum conductor, XLPE insulated,PE sheathed power cable |
| YJV22 |
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV22 |
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
| YJV23 |
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJLV23 |
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJV32 |
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
| YJLV32 |
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
| YJV33 |
Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
| YJLV33 |
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 3.6/6(7.2)kV 3.8/6.6(7.2) KV Cable Data
|
Conductor
|
Insulation thickness (mm)
|
Copper tape screen (approximate) (mm)
|
PVC
bedding thickness (mm)
|
Armored wire outer diameter (mm)
|
Sheath thickness (mm)
|
Outer diameter (approximate) (mm)
|
Copper core cable weight (kg/km)
|
Aluminum core cable weight (kg/km)
|
|
Cross sectional area (mm2)
|
Structure
|
Outer diameter (mm)
|
|
25
|
Compact round
|
6.0
|
2.5
|
0.1
|
1.2
|
2.0
|
2.3
|
42.1
|
3317
|
2845
|
|
35
|
Compact round
|
7.2
|
2.5
|
0.1
|
1.3
|
2.5
|
2.5
|
46.7
|
4312
|
3651
|
|
50
|
Compact round
|
8.4
|
2.5
|
0.1
|
1.3
|
2.5
|
2.5
|
49.3
|
4972
|
4028
|
|
70
|
Compact round
|
10.0
|
2.5
|
0.1
|
1.4
|
2.5
|
2.7
|
53.3
|
5968
|
4646
|
|
95
|
Compact round
|
11.7
|
2.5
|
0.1
|
1.4
|
2.5
|
2.8
|
57.2
|
7033
|
5239
|
|
120
|
Compact round
|
13.1
|
2.5
|
0.1
|
1.5
|
2.5
|
2.9
|
60.6
|
8072
|
5807
|
|
150
|
Compact round
|
14.6
|
2.5
|
0.1
|
1.6
|
2.5
|
3.0
|
64.2
|
9288
|
6456
|
|
185
|
Compact round
|
16.3
|
2.5
|
0.1
|
1.6
|
2.5
|
3.1
|
68.1
|
10737
|
7245
|
|
240
|
Compact round
|
18.5
|
2.6
|
0.1
|
1.7
|
2.5
|
3.3
|
73.9
|
12869
|
8339
|
|
300
|
Compact round
|
20.7
|
2.8
|
0.1
|
1.8
|
3.15
|
3.5
|
81.8
|
16183
|
10520
|
|
400
|
Compact round
|
23.8
|
3.0
|
0.1
|
2.0
|
3.15
|
3.8
|
90.4
|
20070
|
12519
|
|
500
|
Compact round
|
26.6
|
3.2
|
0.1
|
2.1
|
3.15
|
4.1
|
99.3
|
24131
|
14692
|
SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 6/10(12)kV 6.35/11(12)kV cable date
|
Conductor
|
Insulation thickness (mm)
|
Copper tape screen (approximate) (mm)
|
PVC
bedding thickness (mm)
|
Armored wire outer diameter (mm)
|
Sheath thickness (mm)
|
Outer diameter (approximate) (mm)
|
Copper core cable weight (kg/km)
|
Aluminum core cable weight (kg/km)
|
|
Cross sectional area (mm2)
|
Structure
|
Outer diameter (mm)
|
|
25
|
Compact round
|
6.0
|
3.4
|
0.1
|
1.3
|
2.5
|
2.5
|
48.0
|
4175
|
3703
|
|
35
|
Compact round
|
7.2
|
3.4
|
0.1
|
1.3
|
2.5
|
2.6
|
50.8
|
4733
|
4072
|
|
50
|
Compact round
|
8.4
|
3.4
|
0.1
|
1.4
|
2.5
|
2.7
|
53.8
|
5491
|
4547
|
|
70
|
Compact round
|
10.0
|
3.4
|
0.1
|
1.5
|
2.5
|
2.8
|
57.6
|
6446
|
5124
|
|
95
|
Compact round
|
11.7
|
3.4
|
0.1
|
1.5
|
2.5
|
2.9
|
61.5
|
7530
|
5737
|
|
120
|
Compact round
|
13.1
|
3.4
|
0.1
|
1.6
|
2.5
|
3.0
|
64.9
|
8628
|
6363
|
|
150
|
Compact round
|
14.6
|
3.4
|
0.1
|
1.6
|
2.5
|
3.1
|
68.3
|
9794
|
6963
|
|
185
|
Compact round
|
16.3
|
3.4
|
0.1
|
1.7
|
2.5
|
3.3
|
72.6
|
11326
|
7834
|
|
240
|
Compact round
|
18.5
|
3.4
|
0.1
|
1.8
|
3.15
|
3.5
|
79.2
|
14268
|
9737
|
|
300
|
Compact round
|
20.7
|
3.4
|
0.1
|
1.9
|
3.15
|
3.6
|
84.8
|
16641
|
10978
|
|
400
|
Compact round
|
23.8
|
3.4
|
0.1
|
2.0
|
3.15
|
3.9
|
92.3
|
20362
|
12811
|
|
500
|
Compact round
|
26.6
|
3.4
|
0.1
|
2.1
|
3.15
|
4.1
|
99.3
|
24203
|
14764
|
SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 12/20(24) KV 12.7/22(24)kV
Cable Data
|
Conductor
|
Insulation thickness (mm)
|
Copper tape screen (approximate) (mm)
|
PVC
bedding thickness (mm)
|
Armored wire diameter (mm)
|
Sheath thickness (mm)
|
Outer diameter (approximate) (mm)
|
Copper core cable weight (kg/km)
|
Aluminum core cable weight (kg/km)
|
|
Cross sectional area (mm2)
|
Structure
|
Outer diameter (mm)
|
|
35
|
Compact round
|
7.2
|
5.5
|
0.1
|
1.5
|
2.5
|
2.9
|
60.8
|
5934
|
5273
|
|
50
|
Compact round
|
8.4
|
5.5
|
0.1
|
1.6
|
2.5
|
3.0
|
63.8
|
6706
|
5763
|
|
70
|
Compact round
|
10.0
|
5.5
|
0.1
|
1.6
|
2.5
|
3.1
|
67.5
|
7699
|
6378
|
|
95
|
Compact round
|
11.7
|
5.5
|
0.1
|
1.7
|
2.5
|
3.3
|
71.7
|
8932
|
7139
|
|
120
|
Compact round
|
13.1
|
5.5
|
0.1
|
1.8
|
3.15
|
3.4
|
76.4
|
10907
|
8641
|
|
150
|
Compact round
|
14.6
|
5.5
|
0.1
|
1.8
|
3.15
|
3.5
|
79.9
|
12187
|
9355
|
|
185
|
Compact round
|
16.3
|
5.5
|
0.1
|
1.9
|
3.15
|
3.6
|
83.9
|
13742
|
10250
|
|
240
|
Compact round
|
18.5
|
5.5
|
0.1
|
2.0
|
3.15
|
3.8
|
89.3
|
16001
|
11471
|
|
300
|
Compact round
|
20.7
|
5.5
|
0.1
|
2.1
|
3.15
|
4.0
|
95.0
|
18538
|
12875
|
|
400
|
Compact round
|
23.8
|
5.5
|
0.1
|
2.2
|
3.15
|
4.2
|
102.3
|
22314
|
14762
|
|
500
|
Compact round
|
26.6
|
5.5
|
0.1
|
2.3
|
3.15
|
4.4
|
110.2
|
26392
|
16953
|
SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 18/30(36)kV 19/33(36)kV Cable Date
|
Conductor
|
Insulation thickness (mm)
|
Copper tape screen (approximate) (mm)
|
PVC
bedding thickness (mm)
|
Armored wire diameter (mm)
|
Sheath thickness (mm)
|
Outer diameter (approximate) (mm)
|
Copper core cable weight (kg/km)
|
Aluminum core cable weight (kg/km)
|
|
Cross sectional area (mm2)
|
Structure
|
Outer diameter (mm)
|
|
50
|
Compact round
|
8.4
|
8.0
|
0.1
|
1.8
|
3.15
|
3.5
|
77.3
|
9333
|
8390
|
|
70
|
Compact round
|
10.0
|
8.0
|
0.1
|
1.8
|
3.15
|
3.6
|
80.9
|
10396
|
9075
|
|
95
|
Compact round
|
11.7
|
8.0
|
0.1
|
1.9
|
3.15
|
3.7
|
85.0
|
11723
|
9930
|
|
120
|
Compact round
|
13.1
|
8.0
|
0.1
|
2.0
|
3.15
|
3.8
|
88.4
|
12986
|
10720
|
|
150
|
Compact round
|
14.6
|
8.0
|
0.1
|
2.0
|
3.15
|
3.9
|
91.8
|
14220
|
11388
|
|
185
|
Compact round
|
16.3
|
8.0
|
0.1
|
2.1
|
3.15
|
4.0
|
95.9
|
15887
|
12395
|
|
240
|
Compact round
|
18.5
|
8.0
|
0.1
|
2.2
|
3.15
|
4.2
|
101.2
|
18144
|
13613
|
|
300
|
Compact round
|
20.7
|
8.0
|
0.1
|
2.3
|
3.15
|
4.4
|
107.0
|
20761
|
15097
|
|
400
|
Compact round
|
23.8
|
8.0
|
0.1
|
2.4
|
3.15
|
4.6
|
114.3
|
24824
|
17273
|
|
500
|
Compact round
|
26.6
|
8.0
|
0.1
|
2.5
|
3.15
|
4.8
|
122.2
|
29019
|
19580
|
