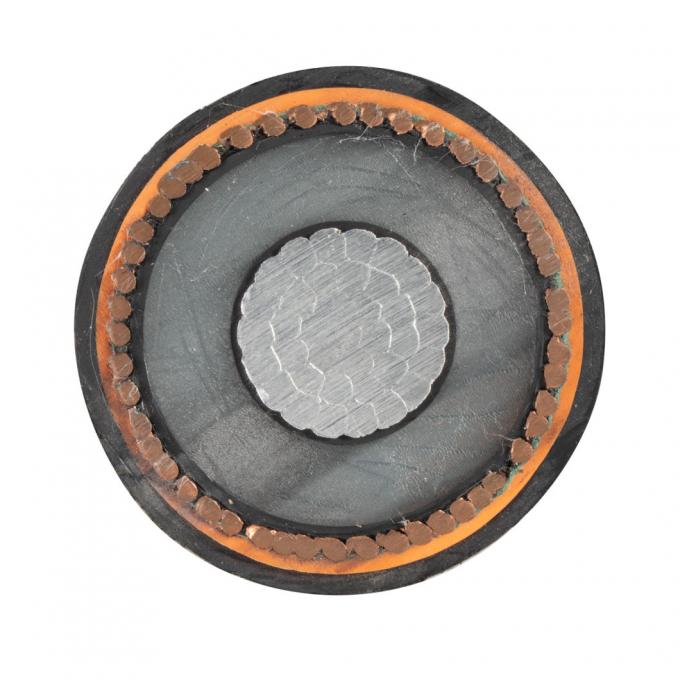

N2XSEY 11kV 22kV 33kV Medium Voltage Copper Aluminum Conductor XLPE Insulated Armored Power Cable
1 Product Standard
This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request.
2 Application
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv.
3 Operating characteristics
- Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
- Max.admissible operating temperature of the conductor:90ºC.
- Max. short-circurt temperature of conductor shall not exceed 2500C. (5s maximum duration)
- The ambient temperature under installation should not below 00C.
- The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a multi-core cable should not less than 15 times of the cable diameter.
4 Table of the voltage, cores and cross-section
| Item |
Category A ,B |
3.6/6kV |
6/10kV |
8.7/15kV |
12/20kV |
18/30kV |
21/35kV |
| Category A ,B |
6/6kV |
8.7/10kV |
12/15kV |
18/20kV |
- |
26/35kV |
| Single core |
mm2 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
| Three core |
mm2 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
5 Type and Name
| Type |
Designation |
Applications |
| YJV |
Copper conductor,XLPE insulated,PVC sheathed power cable |
For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV |
Aluminum conductor,XLPE insulated,PVC sheathed power cable |
| YJY |
Copper conductor, XLPE insulated,PE sheathed power cable |
| YJLY |
Aluminum conductor, XLPE insulated,PE sheathed power cable |
| YJV22 |
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV22 |
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
| YJV23 |
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJLV23 |
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJV32 |
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
| YJLV32 |
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
| YJV33 |
Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
| YJLV33 |
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |

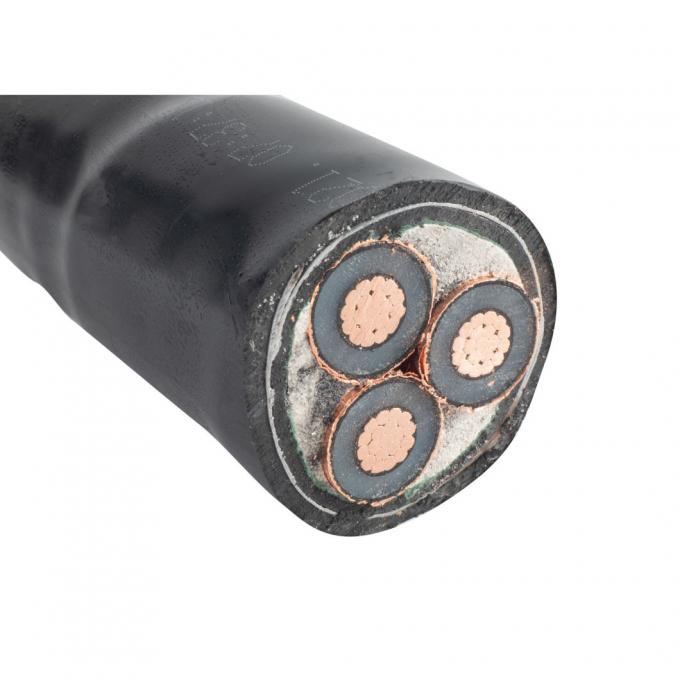

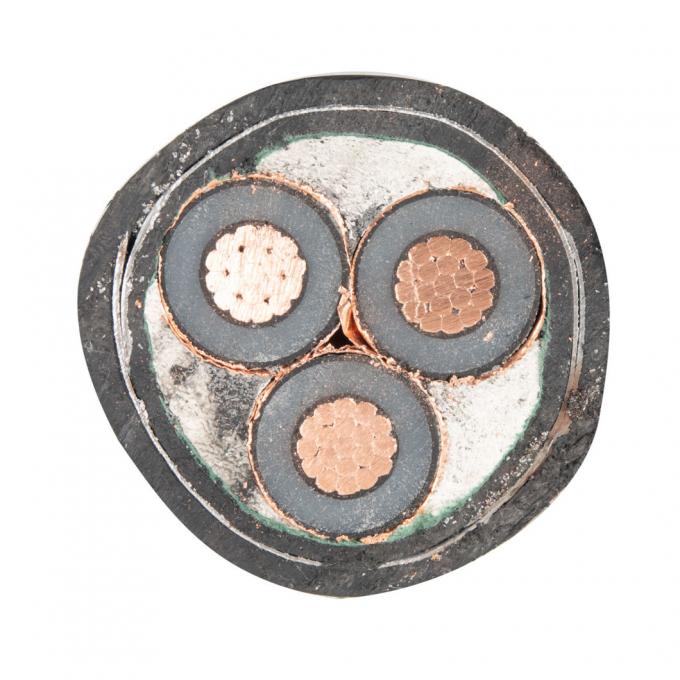

Armoured 3-core cable with XLPE insualtion. Rated voltage 6/10 KV 6.35/11KV
Cable Data
|
Conductor
|
Insulation thickness (mm)
|
Copper tape screen (approximate) (mm)
|
PVC
bedding thickness (mm)
|
Armored wire outer diameter (mm)
|
Sheath thickness (mm)
|
Outer diameter (approximate) (mm)
|
Copper core cable weight (kg/km)
|
Aluminum core cable weight (kg/km)
|
|
Cross sectional area (mm2)
|
Structure
|
Outer diameter (mm)
|
|
25
|
Compact round
|
6.0
|
3.4
|
0.1
|
1.3
|
2.5
|
2.5
|
48.0
|
4175
|
3703
|
|
35
|
Compact round
|
7.2
|
3.4
|
0.1
|
1.3
|
2.5
|
2.6
|
50.8
|
4733
|
4072
|
|
50
|
Compact round
|
8.4
|
3.4
|
0.1
|
1.4
|
2.5
|
2.7
|
53.8
|
5491
|
4547
|
|
70
|
Compact round
|
10.0
|
3.4
|
0.1
|
1.5
|
2.5
|
2.8
|
57.6
|
6446
|
5124
|
|
95
|
Compact round
|
11.7
|
3.4
|
0.1
|
1.5
|
2.5
|
2.9
|
61.5
|
7530
|
5737
|
|
120
|
Compact round
|
13.1
|
3.4
|
0.1
|
1.6
|
2.5
|
3.0
|
64.9
|
8628
|
6363
|
|
150
|
Compact round
|
14.6
|
3.4
|
0.1
|
1.6
|
2.5
|
3.1
|
68.3
|
9794
|
6963
|
|
185
|
Compact round
|
16.3
|
3.4
|
0.1
|
1.7
|
2.5
|
3.3
|
72.6
|
11326
|
7834
|
|
240
|
Compact round
|
18.5
|
3.4
|
0.1
|
1.8
|
3.15
|
3.5
|
79.2
|
14268
|
9737
|
|
300
|
Compact round
|
20.7
|
3.4
|
0.1
|
1.9
|
3.15
|
3.6
|
84.8
|
16641
|
10978
|
|
400
|
Compact round
|
23.8
|
3.4
|
0.1
|
2.0
|
3.15
|
3.9
|
92.3
|
20362
|
12811
|
|
500
|
Compact round
|
26.6
|
3.4
|
0.1
|
2.1
|
3.15
|
4.1
|
99.3
|
24203
|
14764
|
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Cable Types:
N2xsery: This is a type of power cable that conforms to the European standard HD 620. It features copper conductors, XLPE (cross-linked polyethylene) insulation, and an armor layer. The "e" in N2xsery indicates that it has improved resistance to fire propagation.
N2xsey: Similar to N2xsery, N2xsey is another type of power cable that meets the European standard HD 620. It also has copper conductors and XLPE insulation. However, it does not have the enhanced fire propagation resistance of N2xsery.
Voltage Ratings:
The cable is available in different voltage ratings, including 11kV, 22kV, and 33kV. These ratings indicate the maximum voltage at which the cable can safely operate.
XLPE (cross-linked polyethylene) insulated cable refers to an electrical cable that has conductors insulated with XLPE material. XLPE is a thermosetting polymer known for its excellent electrical properties, making it a popular choice for various applications in the power transmission and distribution industry.
Insulation Material: XLPE is a type of polyethylene that is chemically cross-linked. This cross-linking process improves the thermal and mechanical properties of the insulation, making it more robust and durable compared to non-cross-linked materials.
Electrical Performance: XLPE insulation offers high dielectric strength, low dielectric losses, and excellent insulation resistance. This allows for efficient power transmission while minimizing energy losses.
Thermal Properties: XLPE insulation can withstand higher operating temperatures than traditional PVC (polyvinyl chloride) insulation. This makes XLPE cables suitable for applications that require higher temperature ratings.
Environmental Resistance: XLPE insulation provides good resistance to moisture, chemicals, and environmental stresses, such as UV radiation. This makes XLPE cables suitable for indoor and outdoor installations.
