CE BVVB BVR BV flexible copper 2 core or 2+ earth PVC electrical building twin flat wire
Conductor:
Copper/Aluminum/Copper clad aluminum
Insulation:
PVC/PE/HDPE/XLPE
Apply voltage:
300/300V 300/500V 450/750V
Ambient Temperature:
Above 0°C
Operation temperature:
For PVC insulated wire, the Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.
Type, description and range of production
|
Category
|
Descriptions
|
Type
|
Rated voltage
|
No. of cores
|
Nominal Cross .section mm2.
|
|
Non-sheathed cables and wires for fixed wiring
|
Single core solid conductor non-sheathed cables for common uses
|
60227IEC01
(BV)
|
450/750
|
1
|
1.5~400
|
|
Aluminum conductor PVC insulated cables
|
BLV
|
450/750
|
1
|
2.5~400
|
|
Copper conductor PVC insulated flexible cables
|
BVR
|
450/750
|
1
|
2.5~70
|
|
Copper conductor PVC insulated wires
|
BV
|
300/500
|
1
|
0.75~1.0
|
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C
|
60227IEC05
(BV)
|
300/500
|
1
|
0.5~1.0
|
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C
|
60227IEC07
(BV-90)
|
300/500
|
1
|
0.5~2.5
|
|
Single core flexible conductor non-sheathed cables for common uses
|
60227IEC02
(RV)
|
450/750
|
1
|
1.5~240
|
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C
|
60227IEC06
(RV)
|
300/500
|
1
|
0.5~1.0
|
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C
|
60227IEC08
(RV-90)
|
300/500
|
1
|
0.5~2.5
|
|
Sheathed cables for fixed wiring
|
Light-duty PVC sheathed cables
|
60227IEC10(BVV)
|
300/500
|
1,2,3,
4,5
|
1.5~35
|
|
Copper conductor PVC insulated PVC sheathed flat cables
|

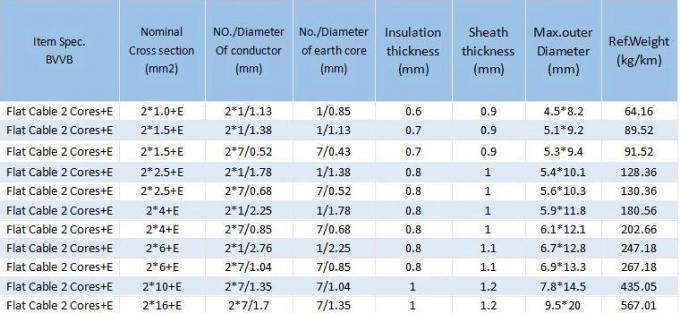

BVVB
|
300/500
|
2,3
|
0.75~10
|
|
Aluminum conductor PVC insulated PVC sheathed circular cables
|
BLVV
|
300/500
|
1
|
2.5~10
|
|
Aluminum conductor PVC insulated PVC sheathed flat cables
|
BLVVB
|
300/500
|
2,3
|
2.5~10
|
|
Flexible cables(cords)
|
Non-sheathed flat cords
|
60227IEC42(RVB)
|
300/300
|
2
|
0.5~0.75
|
|
Cords for indoor illumination loops
|
60227IEC43
(SVR)
|
300/300
|
1
|
0.5~0.75
|
|
Light-duty PVC sheathed cords
|
60227IEC52(RVV)
|
300/300
|
2,3
|
0.5~0.75
|
|
Ordinary PVC sheathed cords
|
60227IEC53(RVV)
|
300/500
|
2,3,4,5
|
0.75~2.5
|
|
Copper conductor PVC insulated stranded cords for connecting
|
RVS
|
300/300
|
2
|
0.5~0.75
|
Technical Parameters:
4.Standard
IEC 60227-2007 or as per customer's request
Some Type (Remarks: we can design and produce according to customer's request.)
------Our Feature------
- Imported equipment with an experienced technical team
The company has three plants and 3048 employees which have 206 engineers. The plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machines from Portier France, SKET Germany, Caballe Spain, 220KV and 35KV production lines plus SIKORA X-RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable has gotten ISO 9001, ISO 14001, and OHSAS 18001. The plant passed TUV, VDE, UL, CE, SAA, BS etc. certificates.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional supplier of global intelligent building cable infrastructure products and services, and a trustworthy enterprise dedicated to global power development.
Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.
Fang Yu (Shanghai) products cover four categories: power cables, electrical equipment wires and cables, communication cables, and bare wires.
