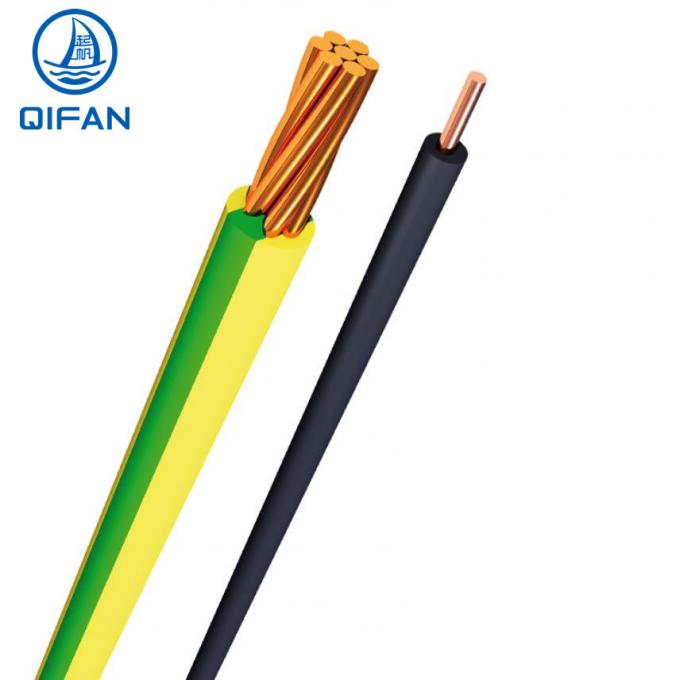

PVC Insulation Copper Wire H07V-U H07V-K H07V-R BV RV BVR NYA NYAFEarth Wire Building Wire House wire
Application:
To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Standard:
IEC 60227,BS 6004,EN 50525-2-31,GB/T 5023,AS/NZS 5000.1,UL 83
Construction:
1. Conductor: Class 1 solid copper or class 2 stranded copper or class 5 stranded copper
2. Insulation: Polyvinyl chloride compound (PVC)
Cross Section:
450/750V 60227 IEC 01: 1.5~400mm2
450/750V 60227 IEC 02: 1.5~240mm2
300/500V 60227 IEC 05: 0.5~1.0mm2
300/500V 60227 IEC 06: 0.5~1.0mm2
300/500V 60227 IEC 07: 0.5~2.5mm2
300/500V 60227 IEC 08: 0.5~2.5mm2
Temperature:
Conductor normal operating temperature:
60227 IEC 01: -15ºC~70ºC
60227 IEC 02: -15ºC~70ºC
60227 IEC 05: -15ºC~70ºC
60227 IEC 06: -15ºC~70ºC
60227 IEC 07: -15ºC~90ºC
60227 IEC 08: -15ºC~90ºC
Min. laying temperatrue: 0ºC
Electrical Characteristics:
Type Rated Voltage Test voltage Test time
60227 IEC 01 450/750V 2500V 5min
60227 IEC 02 450/750V 2500V 5min
60227 IEC 05 300/500V 2000V 5min
60227 IEC 06 300/500V 2000V 5min
60227 IEC 07 300/500V 2000V 5min
60227 IEC 08 300/500V 2000V 5min
Standard:
Conductor: IEC 60228
Structure: IEC 60227-3,EN 50525-2-31,BS 6004,UL 83,AS/NZS 5000.1
Color:
To costumer request
Details:
| Conductor: |
Oxygen free Copper |
Voltage Rating: |
300V-500V, 450V-750V |
| Insulation: |
PVC material |
Section size: |
From 0.5mm2 to 400 mm2 |
| Temperature limitation: |
70ºC for long time normal operation |
Mini bending radius: |
4 times the cable diameter |
| Installation temperature: |
Above 0ºC |
Max short circle temperature: |
160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. |

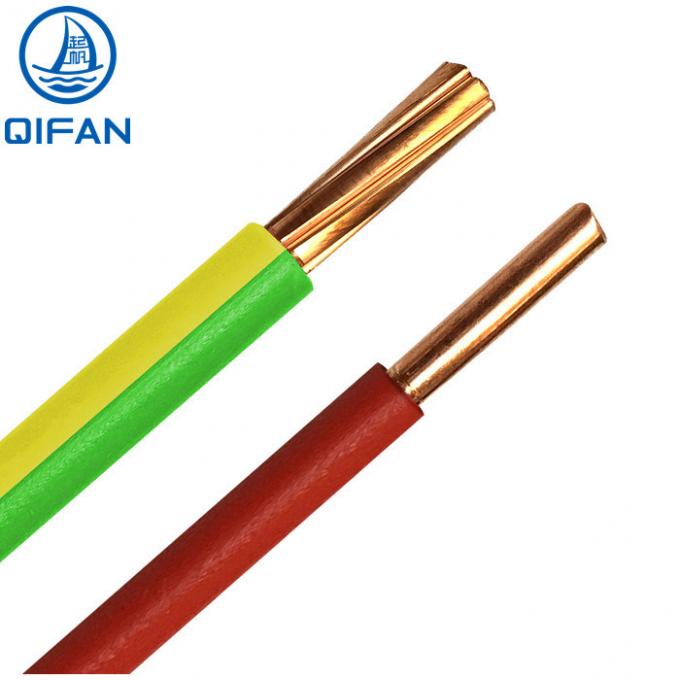

| 450/750V Solid Cu /PVC Insulation (H07V-U,BV) |
| Size |
Cu conductor |
PVC Insulation |
Approx. Overall Dia. |
Approx. Weight |
| mm2 |
Str. No. |
Dia. |
Nominal Thickness |
| No.s |
mm |
mm |
mm |
kg/km |
| 0.5 |
1 |
0.8 |
0.6 |
2 |
8 |
| 0.75 |
1 |
0.98 |
0.6 |
2.2 |
12 |
| 1 |
1 |
1.13 |
0.6 |
2.3 |
14 |
| 1.5 |
1 |
1.38 |
0.7 |
2.8 |
20 |
| 2.5 |
1 |
1.78 |
0.8 |
3.4 |
32 |
| 4 |
1 |
2.26 |
0.8 |
3.9 |
48 |
| 6 |
1 |
2.76 |
0.8 |
4.4 |
67 |
| 10 |
1 |
3.57 |
1 |
5.6 |
111 |
| 450/750V Stranded Cu /PVC Insulation (H07V-R,BV) |
| Size |
Cu conductor |
PVC Insulation |
Approx. Overall Dia. |
Approx. Weight |
| Str. No. |
Dia. |
Nominal Thickness |
| mm2 |
No.s |
mm |
mm |
mm |
kg/km |
| 1.5 |
7 |
1.56 |
0.7 |
3 |
21 |
| 2.5 |
7 |
2.01 |
0.8 |
3.6 |
33 |
| 4 |
7 |
2.55 |
0.8 |
4.2 |
49 |
| 6 |
7 |
3.12 |
0.8 |
4.7 |
68 |
| 10 |
7 |
4.05 |
1 |
6.1 |
114 |
| 16 |
7 |
5.13 |
1 |
7.1 |
175 |

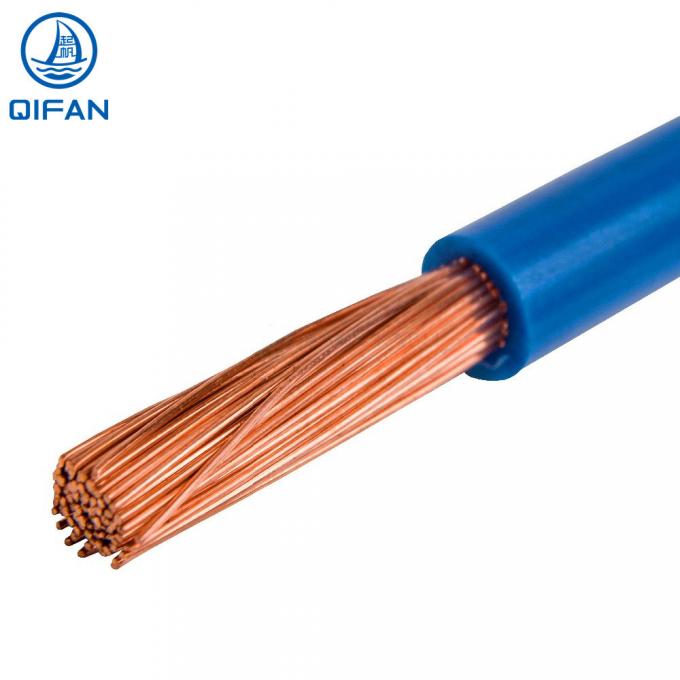

| 450/750V Flexible Cu /PVC Insulation (H07V-K,RV) |
| Nomina section |
Core structure |
Max.dia(mm) |
Reference weight(kg/km) |
| (mm2) |
No./dia(mm) |
| 1.5 |
30/0.25 |
3.5 |
21.4 |
| 2.5 |
49/0.25 |
4.2 |
54.5 |
| 4 |
56/0.30 |
4.8 |
51.8 |
| 6 |
84/0.3 |
6.4 |
747.1 |
| 10 |
84/0.4 |
8 |
113.9 |
