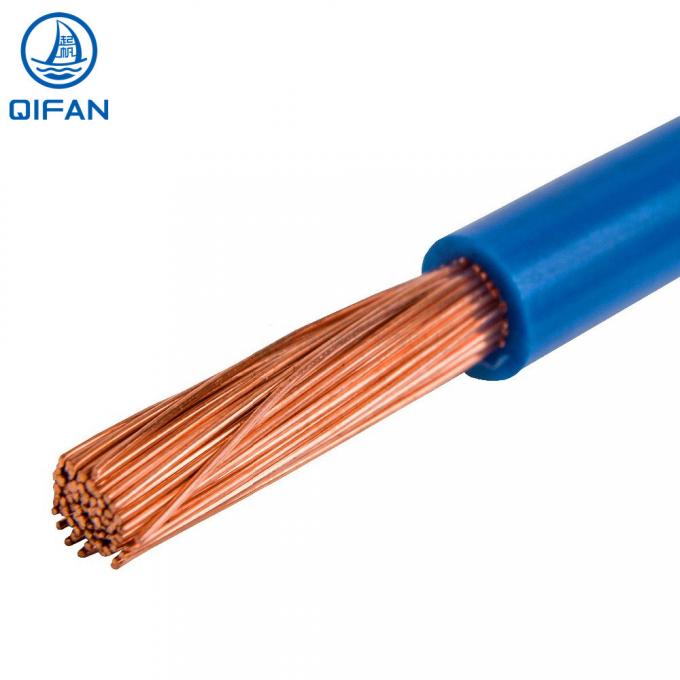

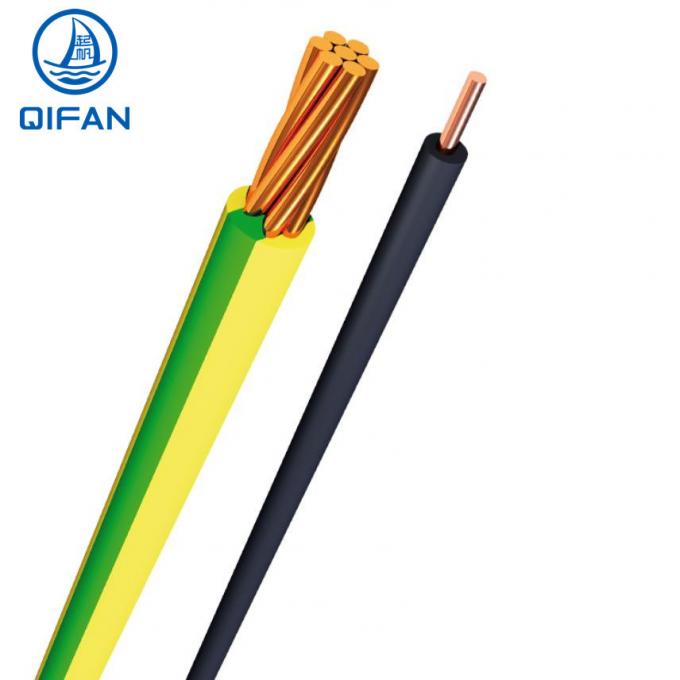

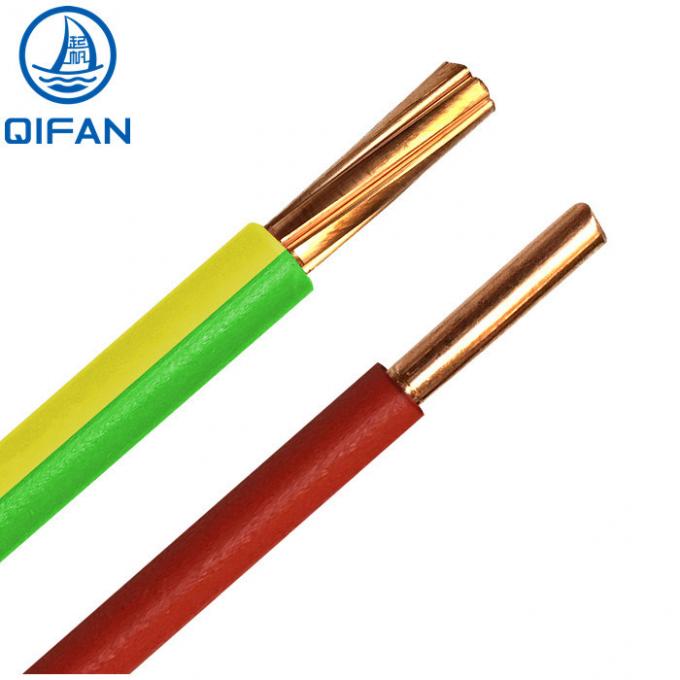

H07V-U H07V-K H07V-R BV RV BVR Nya Nyaf PVC Copper Wire Earth Wire Building Wire
Application:
To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Construction:
1. Conductor: Class 1 solid copper or class 2 stranded copper or class 5 stranded copper
2. Insulation: Polyvinyl chloride compound (PVC)
Cross Section:
450/750V 60227 IEC 01: 1.5~400mm2
450/750V 60227 IEC 02: 1.5~240mm2
300/500V 60227 IEC 05: 0.5~1.0mm2
300/500V 60227 IEC 06: 0.5~1.0mm2
300/500V 60227 IEC 07: 0.5~2.5mm2
300/500V 60227 IEC 08: 0.5~2.5mm2
Temperature:
Conductor normal operating temperature:
60227 IEC 01: -15ºC~70ºC
60227 IEC 02: -15ºC~70ºC
60227 IEC 05: -15ºC~70ºC
60227 IEC 06: -15ºC~70ºC
60227 IEC 07: -15ºC~90ºC
60227 IEC 08: -15ºC~90ºC
Min. laying temperatrue: 0ºC
Electrical Characteristics:
Type Rated Voltage Test voltage Test time
60227 IEC 01 450/750V 2500V 5min
60227 IEC 02 450/750V 2500V 5min
60227 IEC 05 300/500V 2000V 5min
60227 IEC 06 300/500V 2000V 5min
60227 IEC 07 300/500V 2000V 5min
60227 IEC 08 300/500V 2000V 5min
Standard:
Conductor: IEC 60228
Structure: IEC 60227-3
Color:
To costumer request
Details:
| Conductor: |
Oxygen free Copper |
Voltage Rating: |
300V-500V, 450V-750V |
| Insulation: |
PVC material |
Section size: |
From 0.5mm2 to 400 mm2 |
| Temperature limitation: |
70ºC for long time normal operation |
Mini bending radius: |
4 times the cable diameter |
| Installation temperature: |
Above 0ºC |
Max short circle temperature: |
160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. |
