Building Wire Cable Flat Twin Cable Red and Black Copper Wire

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO9001, CE, CCC

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

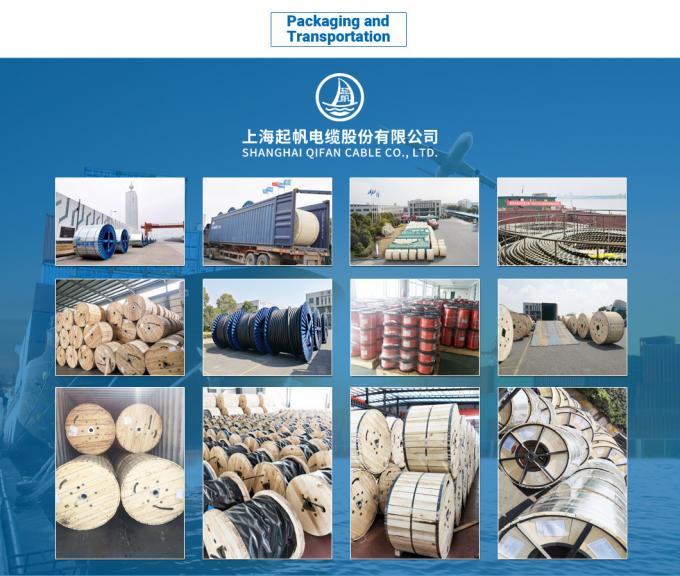

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price
Highlight:
Model NO.:
Wire
Material Shape:
Flat Wire
Range Of Application:
Flame Retardant
Brand:
QIFAN
Quality Team:
50
Color:
Grey White
Transport Package:
Rolls
Specification:
Copper Cable
Trademark:
Qifan
Origin:
China
HS Code:
8544492100
Supply Ability:
5000000000km
Type:
Insulated
Conductor Type:
Stranded
Application:
Building
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
PVC
Samples:
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Model NO.:
Wire
Material Shape:
Flat Wire
Range Of Application:
Flame Retardant
Brand:
QIFAN
Quality Team:
50
Color:
Grey White
Transport Package:
Rolls
Specification:
Copper Cable
Trademark:
Qifan
Origin:
China
HS Code:
8544492100
Supply Ability:
5000000000km
Type:
Insulated
Conductor Type:
Stranded
Application:
Building
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
PVC
Samples:
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Building Wire Cable Flat Twin Cable Red and Black Copper Wire

Product Description

2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire

Application:
The cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities

Construction:
1.    Conductor - Plain annealed class 2 stranded or class 5 flexible copper
2.    Fire Resistant layer - Mica Tape
3.    Insulation - Low smoke halogen-free (LSZH)

Cross Section:
Class 2 copper conductor: 2C1.0~2C2.5mm2
Class 5 copper conductor: 2C1.0~2C1.5mm2

Temperature characteristics:
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC

Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Color:
Red, black or according to customer requirements
2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire

Fang Yu (Shanghai) Automation Technology Co., Ltd. Our products are widely used in water conservancy, electricity, home decoration, rail transit, construction engineering, aerospace, new energy, communication, intelligent equipment, offshore engineering, and mining and other fields.


Standard:
Cable design: IEC 60502-1
Conductor: IEC 60228
Fire resistant : BS6387 C


Other sizes can also be produced as you required.
Size Conductor Strands Insulation Thickness
2x1.5mm2  7/0.52mm 0.6mm
2x2.5mm2 7/0.68mm 0.7mm
2x1.5mm2+1.5mm2 7/0.52mm 0.6mm
2x2.5mm2+2.5mm2 7/0.68mm 0.7mm
2x4mm2+2.5mm2 7/0.85mm+7/0.68mm 0.8mm
2x6mm2+2.5mm2 7/1.04mm+7/0.68mm 0.8m
------Our Feature------

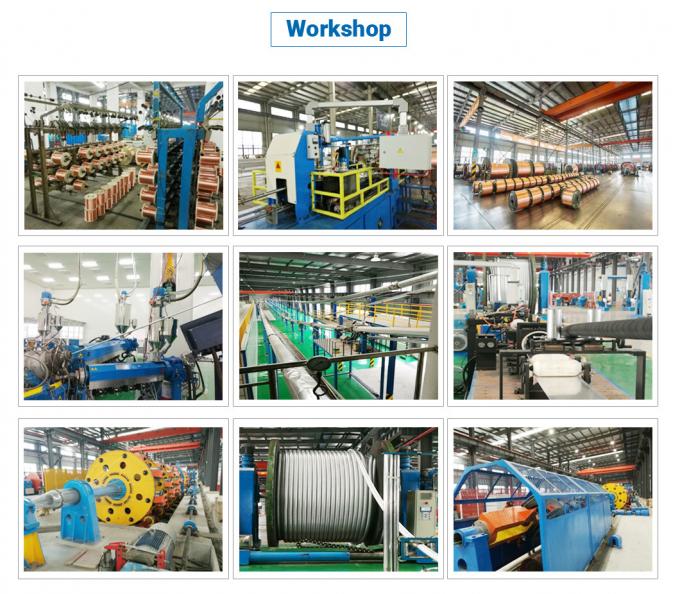

  1. Imported equipment with experienced technical team
    The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
  2. Complete certification system
    Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
  3. Perfect Production system
    Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
  4. Perfect Sales service system
    Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
