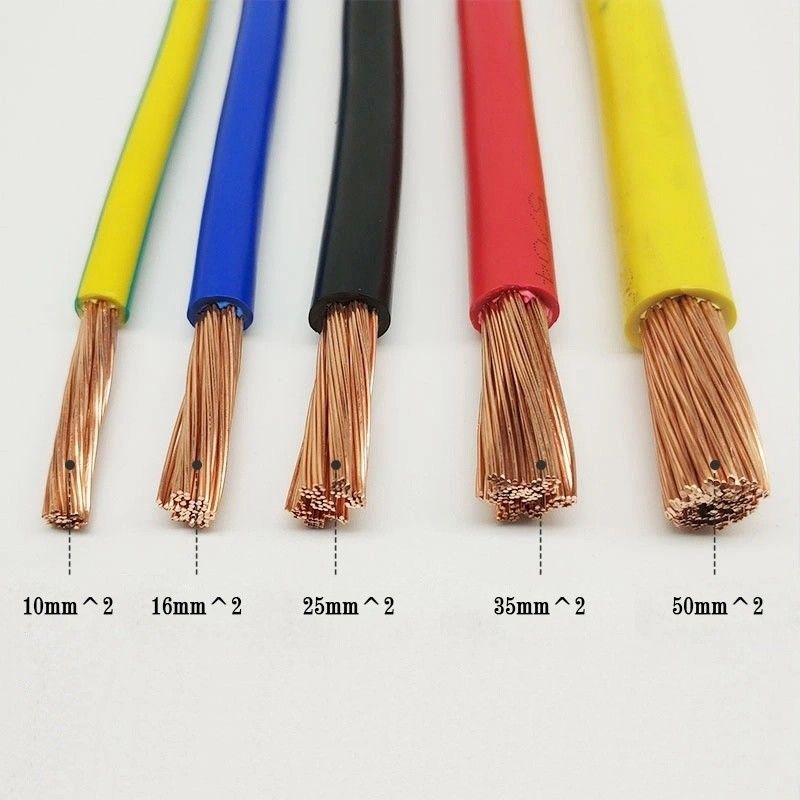

TUV certificate H07V-U H07V-K PVC building electrical wire factory price
TUV H07V-U CERTIFICATE No: R 50263728
1.Application
The product is manufactured according to the stand of IEC 60227, EN 50525-2-31:2001 or as customers requested.upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 300/500V 450/750V respectively
2.Standard:
IEC 60227, EN 50525-2-31:2001 or as customers requested.
3.Specification
Details:
| Conductor: |
Oxygen free Copper |
Voltage Rating: |
300V-500V, 450V-750V |
| Insulation: |
PVC material |
Section size: |
From 0.5mm2 to 400 mm2 |
| Temperature limitation: |
70ºC for long time normal operation
V2 for 90ºC PVC |
Mini bending radius: |
4 times the cable diameter |
| Installation temperature: |
Above 0ºC |
Max short circle temperature: |
160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. |
| H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 |
Cross Section
(mm2) |
Conductor Construction (No/mm) |
Insulation Thickness (mm) |
Overall Diameter Max (mm) |
Min Insulation Resistance@ 70ºC (ohm/Km) |
Weight Approx (Kg/Km) |
| 1x0.5 |
1/0.80 |
0.6 |
2.4 |
0.015 |
8 |
| 1x0.75 |
7/0.97 |
0.6 |
2.8 |
0.012 |
11 |
| 1x0.75 |
1/0.97 |
0.6 |
2.6 |
0.012 |
11 |
| 1x1.0 |
7/0.43 |
0.6 |
3.0 |
/ |
14 |
| 1x1.0 |
1/1.13 |
0.6 |
2.8 |
0.011 |
14 |
| |
|
|
|
|
|
| 1x1.5 |
7/0.52 |
0.7 |
3.4 |
0.010 |
21 |
| 1x1.5 |
1x1.38 |
0.7 |
3.3 |
0.011 |
20 |
| 1x2.5 |
7/0.67 |
0.8 |
4.2 |
0.009 |
32 |
| 1x2.5 |
1x1.78 |
0.8 |
3.9 |
0.010 |
31 |
| 1x4 |
7/0.85 |
0.8 |
4.8 |
0.0077 |
45 |
| 1x4 |
1/2.25 |
0.8 |
4.4 |
0.0085 |
45 |
| |
|
|
|
|
|
| 1x6 |
7/1.04 |
0.8 |
5.4 |
0.0065 |
65 |
| 1x6 |
1/2.76 |
0.8 |
4.9 |
0.0070 |
65 |
| 1x10 |
7/1.35 |
1.0 |
6.8 |
0.0065 |
110 |
| 1x10 |
1/3.57 |
1.0 |
6.4 |
0.0070 |
110 |
| 1x16 |
7/1.70 |
1.0 |
8.0 |
0.0050 |
165 |
| |
|
|
|
|
|
| 1x25 |
7/2.14 |
1.2 |
9.8 |
0.0050 |
264 |
| 1x35 |
7/2.52 |
1.2 |
11.0 |
0.0040 |
360 |
| 1x50 |
19/1.78 |
1.4 |
13.0 |
0.0045 |
490 |
| 1x70 |
19/2.14 |
1.4 |
15.0 |
0.0035 |
685 |
| 1x95 |
19/2.52 |
1.6 |
17.5 |
0.0035 |
946 |
| |
|
|
|
|
|
| 1x120 |
37/2.03 |
1.6 |
19.0 |
0.0032 |
1181 |
| 1x150 |
37/2.25 |
1.8 |
21.0 |
0.0032 |
1453 |
| 1x185 |
37/2.52 |
2.0 |
23.5 |
0.0032 |
1821 |
| |
|
|
|
|
|
| 1x240 |
61/2.24 |
2.2 |
26.5 |
0.0032 |
2383 |
| 1x300 |
61/2.50 |
2.4 |
29.5 |
0.0030 |
2983 |
| 1x400 |
61/2.85 |
2.6 |
33.5 |
0.0028 |
3800 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.
Fang Yu (Shanghai) products cover four categories: power cables, electrical equipment wires and cables, communication cables, and bare wires.
Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
