PVC Insulation Copper Conductor Building wire 4mm2 H07V-R NYA NYAF
Application:
To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Construction:

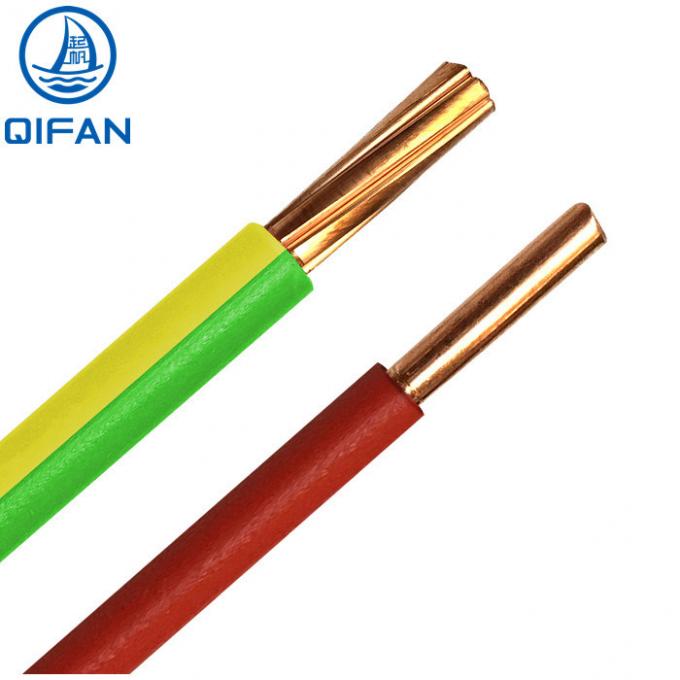

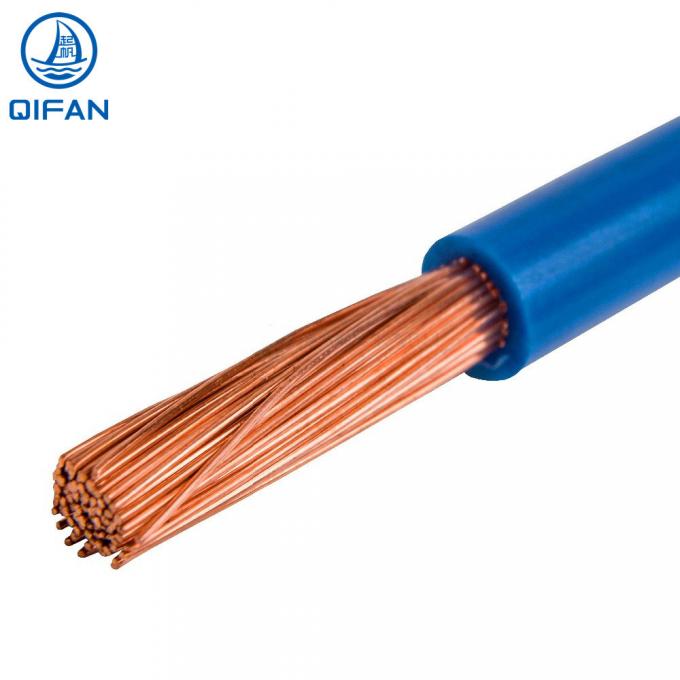

1. Conductor: Class 1 solid copper or class 2 stranded copper or class 5 stranded copper
2. Insulation: Polyvinyl chloride compound (PVC)
Cross Section:
450/750V 60227 IEC 01: 1.5~400mm2
450/750V 60227 IEC 02: 1.5~240mm2
300/500V 60227 IEC 05: 0.5~1.0mm2
300/500V 60227 IEC 06: 0.5~1.0mm2
300/500V 60227 IEC 07: 0.5~2.5mm2
300/500V 60227 IEC 08: 0.5~2.5mm2
Temperature:
Conductor normal operating temperature:
60227 IEC 01: -15ºC~70ºC
60227 IEC 02: -15ºC~70ºC
60227 IEC 05: -15ºC~70ºC
60227 IEC 06: -15ºC~70ºC
60227 IEC 07: -15ºC~90ºC
60227 IEC 08: -15ºC~90ºC
Min. laying temperatrue: 0ºC
Electrical Characteristics:
Type Rated Voltage Test voltage Test time
60227 IEC 01 450/750V 2500V 5min
60227 IEC 02 450/750V 2500V 5min
60227 IEC 05 300/500V 2000V 5min
60227 IEC 06 300/500V 2000V 5min
60227 IEC 07 300/500V 2000V 5min
60227 IEC 08 300/500V 2000V 5min
Standard:
Conductor: IEC 60228
Structure: IEC 60227-3
Color:
To costumer request
Details:
| Conductor: |
Oxygen free Copper |
Voltage Rating: |
300V-500V, 450V-750V |
| Insulation: |
PVC material |
Section size: |
From 0.5mm2 to 400 mm2 |
| Temperature limitation: |
70ºC for long time normal operation |
Mini bending radius: |
4 times the cable diameter |
| Installation temperature: |
Above 0ºC |
Max short circle temperature: |
160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. |
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.
Fang Yu (Shanghai) products have passed China Compulsory Certification (CCC), coal mine product safety mark certification, China Classification Society certification, Telus certification, German TUV certification, European Union CE certification, and United States UL certification.
