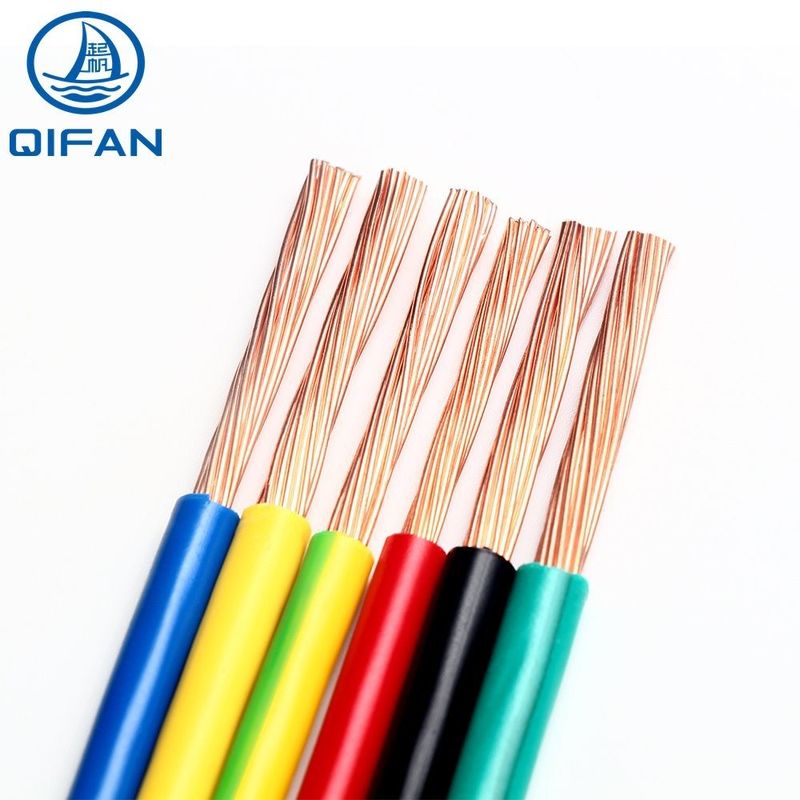

H07V-K 1X16mm2 Electric Wire for Housing
TUV H07V-U CERTIFICATE No: R 50263728
1.Application
The product is manufactured according to the stand of IEC 60227, EN 50525-2-31:2001 or as customers requested.upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 300/500V 450/750V respectively
2.Standard:
IEC 60227, EN 50525-2-31:2001 or as customers requested.
3.Specification
Details:
| Conductor: |
Oxygen free Copper |
Voltage Rating: |
300V-500V, 450V-750V |
| Insulation: |
PVC material |
Section size: |
From 0.5mm2 to 400 mm2 |
| Temperature limitation: |
70ºC for long time normal operation |
Mini bending radius: |
4 times the cable diameter |
| Installation temperature: |
Above 0ºC |
Max short circle temperature: |
160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. |
| H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 |
Cross Section
(mm2) |
Conductor Construction (No/mm) |
Insulation Thickness (mm) |
Overall Diameter Max (mm) |
Min Insulation Resistance@ 70ºC (ohm/Km) |
Weight Approx (Kg/Km) |
| 1x0.5 |
1/0.80 |
0.6 |
2.4 |
0.015 |
8 |
| 1x0.75 |
7/0.97 |
0.6 |
2.8 |
0.012 |
11 |
| 1x0.75 |
1/0.97 |
0.6 |
2.6 |
0.012 |
11 |
| 1x1.0 |
7/0.43 |
0.6 |
3.0 |
/ |
14 |
| 1x1.0 |
1/1.13 |
0.6 |
2.8 |
0.011 |
14 |
| |
|
|
|
|
|
| 1x1.5 |
7/0.52 |
0.7 |
3.4 |
0.010 |
21 |
| 1x1.5 |
1x1.38 |
0.7 |
3.3 |
0.011 |
20 |
| 1x2.5 |
7/0.67 |
0.8 |
4.2 |
0.009 |
32 |
| 1x2.5 |
1x1.78 |
0.8 |
3.9 |
0.010 |
31 |
| 1x4 |
7/0.85 |
0.8 |
4.8 |
0.0077 |
45 |
| 1x4 |
1/2.25 |
0.8 |
4.4 |
0.0085 |
45 |
| |
|
|
|
|
|
| 1x6 |
7/1.04 |
0.8 |
5.4 |
0.0065 |
65 |
| 1x6 |
1/2.76 |
0.8 |
4.9 |
0.0070 |
65 |
| 1x10 |
7/1.35 |
1.0 |
6.8 |
0.0065 |
110 |
| 1x10 |
1/3.57 |
1.0 |
6.4 |
0.0070 |
110 |
| 1x16 |
7/1.70 |
1.0 |
8.0 |
0.0050 |
165 |
| |
|
|
|
|
|
| 1x25 |
7/2.14 |
1.2 |
9.8 |
0.0050 |
264 |
| 1x35 |
7/2.52 |
1.2 |
11.0 |
0.0040 |
360 |
| 1x50 |
19/1.78 |
1.4 |
13.0 |
0.0045 |
490 |
| 1x70 |
19/2.14 |
1.4 |
15.0 |
0.0035 |
685 |
| 1x95 |
19/2.52 |
1.6 |
17.5 |
0.0035 |
946 |
| |
|
|
|
|
|
| 1x120 |
37/2.03 |
1.6 |
19.0 |
0.0032 |
1181 |
| 1x150 |
37/2.25 |
1.8 |
21.0 |
0.0032 |
1453 |
| 1x185 |
37/2.52 |
2.0 |
23.5 |
0.0032 |
1821 |
| |
|
|
|
|
|
| 1x240 |
61/2.24 |
2.2 |
26.5 |
0.0032 |
2383 |
| 1x300 |
61/2.50 |
2.4 |
29.5 |
0.0030 |
2983 |
| 1x400 |
61/2.85 |
2.6 |
33.5 |
0.0028 |
3800 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
