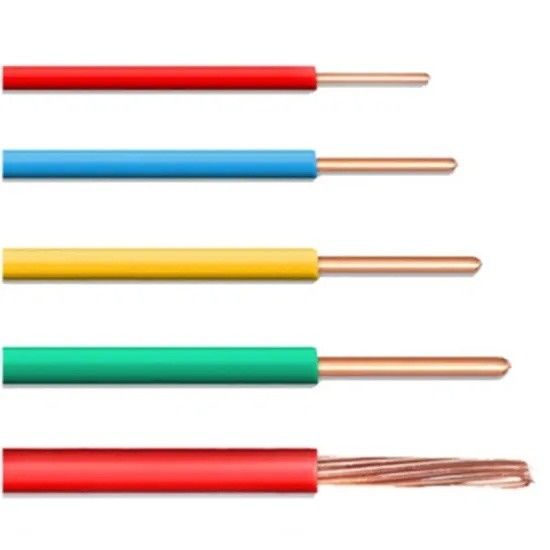

Building Wire Cable Rigid Wire H07V-U Electrical Wire Use

Name: Building Wire Cable Rigid Wire H07V-U Electrical Wire Use
Brand: Qifan
SKU: H07V-U
Price: 3 USD
Availability: InStock
Rating: 4.9 (196 reviews)

Product Details

Place of Origin: China

Brand Name: Qifan

Certification: ISO9001, CCC, RoHS, SAA

Model Number: H07V-U

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: usd3-8/meter

Packaging Details: wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time: 30-45days

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000K Meter/ per Month

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	H07V-U	Material Shape:	Round Wire
Range Of Application:	Flame Retardant	Brand:	QIFAN
QC:	200 Engineer	Warranty:	25 Years
Color:	Brown, White, Red. Green,Y-G	Transport Package:	Reel Or Drum
Specification:	100m One Reel	Trademark:	Qifan
Origin:	China	HS Code:	8544492100
Supply Ability:	500000km Per Month	Type:	Insulated
Conductor Type:	Solid	Application:	Underground
Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PVC

Model NO.:	H07V-U
Material Shape:	Round Wire
Range Of Application:	Flame Retardant
Brand:	QIFAN
QC:	200 Engineer
Warranty:	25 Years
Color:	Brown, White, Red. Green,Y-G
Transport Package:	Reel Or Drum
Specification:	100m One Reel
Trademark:	Qifan
Origin:	China
HS Code:	8544492100
Supply Ability:	500000km Per Month
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Sheath Material:	PVC
Insulation Material:	PVC

Building Wire Cable Rigid Wire H07V-U Electrical Wire Use

Product Description

Rigid Wire H07V-U 1.5mm2 2.5mm2 electrical wire use

TUV H07V-U CERTIFICATE No: R 50263728

1.Application
The product is manufactured according to the stand of IEC 60227, EN 50525-2-31:2001 or as customers requested.upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 300/500V 450/750V respectively

2.Standard:
IEC 60227, EN 50525-2-31:2001 or as customers requested.

3.Specification

Details:

Conductor:	Oxygen free Copper	Voltage Rating:	300V-500V, 450V-750V
Insulation:	PVC material	Section size:	From 0.5mm2 to 400 mm2
Temperature limitation:	70ºC for long time normal operation	Mini bending radius:	4 times the cable diameter
Installation temperature:	Above 0ºC	Max short circle temperature:	160ºC
Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested.

H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004
Cross Section (mm2)	Conductor Construction (No/mm)	Insulation Thickness (mm)	Overall Diameter Max (mm)	Min Insulation Resistance@ 70ºC (ohm/Km)	Weight Approx (Kg/Km)
1x0.5	1/0.80	0.6	2.4	0.015	8
1x0.75	7/0.97	0.6	2.8	0.012	11
1x0.75	1/0.97	0.6	2.6	0.012	11
1x1.0	7/0.43	0.6	3.0	/	14
1x1.0	1/1.13	0.6	2.8	0.011	14

1x1.5	7/0.52	0.7	3.4	0.010	21
1x1.5	1x1.38	0.7	3.3	0.011	20
1x2.5	7/0.67	0.8	4.2	0.009	32
1x2.5	1x1.78	0.8	3.9	0.010	31
1x4	7/0.85	0.8	4.8	0.0077	45
1x4	1/2.25	0.8	4.4	0.0085	45

1x6	7/1.04	0.8	5.4	0.0065	65
1x6	1/2.76	0.8	4.9	0.0070	65
1x10	7/1.35	1.0	6.8	0.0065	110
1x10	1/3.57	1.0	6.4	0.0070	110
1x16	7/1.70	1.0	8.0	0.0050	165

1x25	7/2.14	1.2	9.8	0.0050	264
1x35	7/2.52	1.2	11.0	0.0040	360
1x50	19/1.78	1.4	13.0	0.0045	490
1x70	19/2.14	1.4	15.0	0.0035	685
1x95	19/2.52	1.6	17.5	0.0035	946

1x120	37/2.03	1.6	19.0	0.0032	1181
1x150	37/2.25	1.8	21.0	0.0032	1453
1x185	37/2.52	2.0	23.5	0.0032	1821

1x240	61/2.24	2.2	26.5	0.0032	2383
1x300	61/2.50	2.4	29.5	0.0030	2983
1x400	61/2.85	2.6	33.5	0.0028	3800

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.

------Our Feature------

Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
