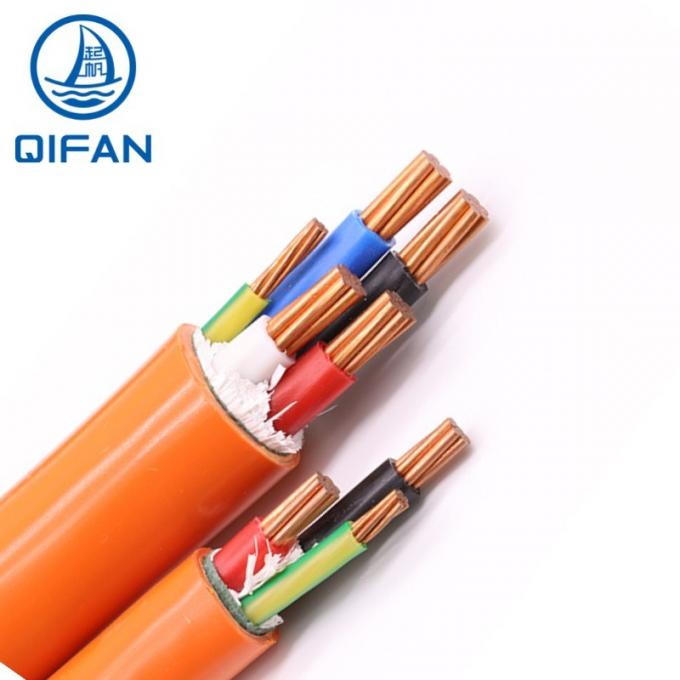

450/750v Orange circular power cable for Australia Market
Orange Circular is the most popular power cable in Australia for factory power distribution applications. Shanghai Qifan Orange Circ has been designed with enhanced UV resistance so this cable can be installed indoors or outdoors directly in sunlight. All QIFAN Orange Circ is manufactured with AS colour coding for quick identification of the phases, neutral and earth conductors.
Part Number
1.5 2.5 4 6 10 16 25 35mm2
Also Known As
2c+e, 3c&e, 4 Core + Earth, Circ
Cable Core Colours
Red, White, Blue, Black & Earth
Cable Voltage
450/750 Volts or 1kv
Cable Size mm
1.5 2.5 4 6 10 16 25 35mm
Cable Insulation & Sheath Material
PVC
Cable Sheath Colour
Orange
Cable Drum Length
Per Metre
Cable Conductor Material
Annealed Copper
| Application: |
For mains, sub mains and sub circuits unenclosed, enclosed in conduit buried direct or underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable for glanding. |
| Conductor: |
Plain annealed copper (AS/NZS 1125) |
| Insulation: |
PVC V90 |
| Sheath: |
PVC 5V-90 |
| Standards: |
AS/NZS 5000.1 |
| Packing Length: |
100m, 500m |
| Normal Operating Temperature: |
90°C |
| Core Colours: |
2 Core+ Earth Core Color: Red, Black, Green/Yellow |
------Our Feature------
- Imported equipment with experienced technical team

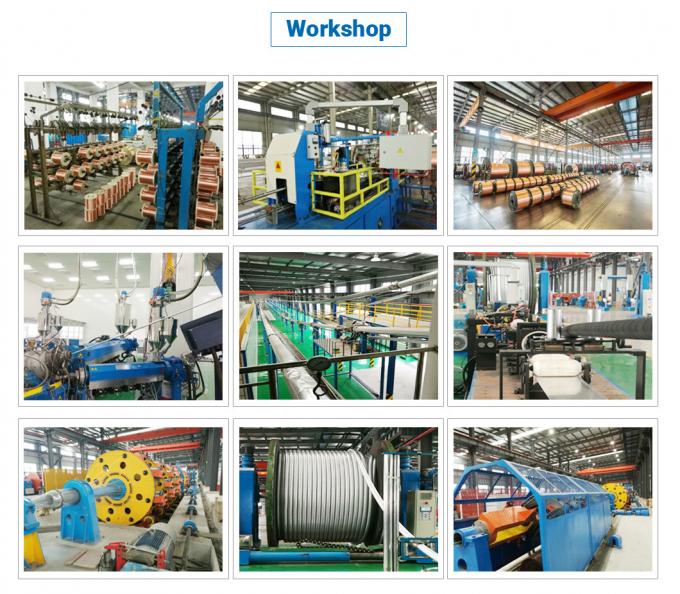

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
- Perfect Production system

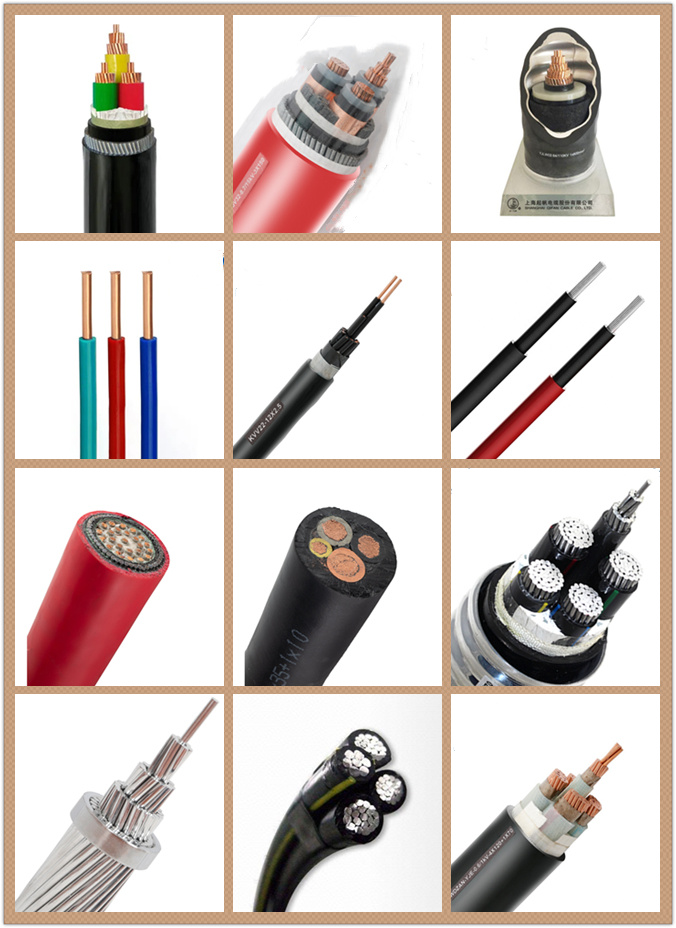

Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
