Product Description
Round or Flat TVV or TVVB flexible elevator travel multicore cable 60*0.5mm
Description:
Conductor: Bare Copper
Insulation:PVC
Jacket: PVC
Cores:3cores,4,cores,5cores,...12cores,.....60cores
Rated Voltage:cross section ≤1.5mm²,300V/500V
cross section>1.5mm²,450V/750V
Test voltage: 2500V
Working Temperature:-15ºC~+70ºC
Min. Bending Radius:0.3m
Standards: GB5023.6, IEC60227-6
Application:
TVVB flat elevator cable is mainly used for flexible suspension length within 80 meters .
Customize Service:

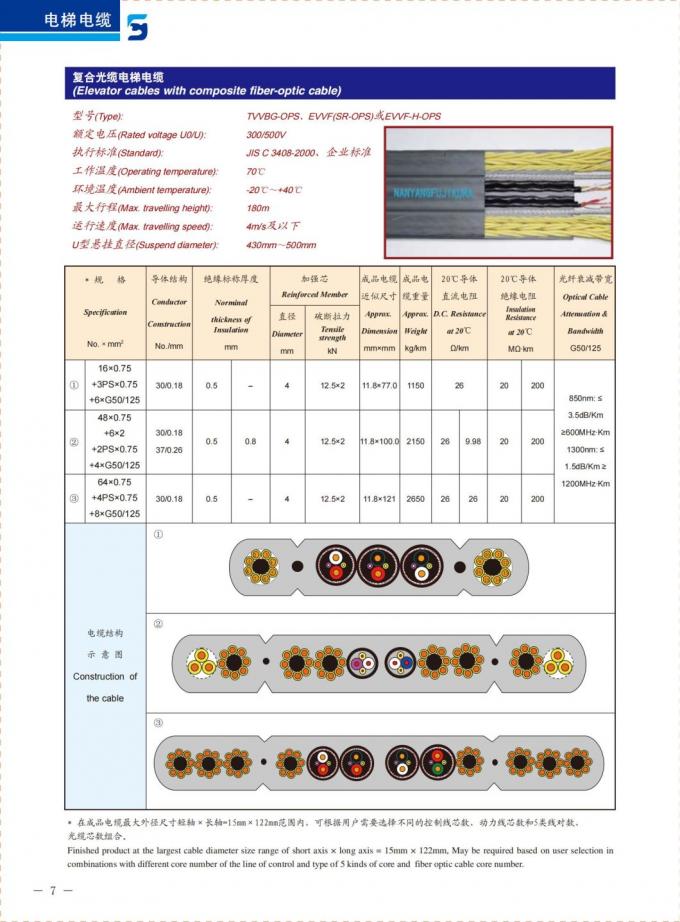

QIFAN CABLE can also customized composite cable with control and coaxial cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables.
1.coaxial cable:RG59,RG6,SYV75-2,SYV75-3
2.Network cable: Cat5e,Cat6
3.Control Cable: RVVP-2*0.75mm²,or other shielded cable.
4.Steel wire, reinforcing steel wire and various other specifications of high tensile strength.
|
Item
|
Copper conductor PVC Insulation Sheath elevator flat travelling shielded cable
|
|
Insulation Material
|
PVC
|
|
Sheath Material
|
PVC
|
|
Color
|
Black, Grey, Orange or your request
|
|
Conductor Material
|
Copper
|
|
Rated Voltage
|
300/500V,450/750V
|
|
MOQ Capacity
|
100 meters
|
|
Temperature Range
|
-15ºC~ +70ºC
|
|
Minimum Bending Radius
|
0.3m<L<0.6m
|
|
Certifications
|
CCC,ISO9001,CE
|
Product Parameters
