Copper Building Wire Xhhw Xhhw-2 Cable 2AWG With UL Listed Electrical Wire

1 Applicant of XHHW-2 cable:

 XHHW insulated wires are generally used in residential, commercial and industrial buildings and

 installations for the purpose of power distribution.

 The cable is manufactured in both copper and aluminum conductors and typically ran in conduit or other approved raceways for services, feeder and circuit wiringXHHW insulation is rated by the Underwriters Laboratories (UL) to be suitable for use in dry locations up to 90 degrees Celsius, or wet locations up to 75 degrees Celsius.

2 Standard of XHHW-2 cable:

Listed by UL as Type XHHW-2 per Standard 44

 3 Construction of XHHW-2 cable:

 XHHW-2 aluminum conductors are AlumaFlex AA-8000 series aluminum alloy, compact stranded.

The insulation is an abrasion, moisture and heat resistant thermoset cross-linked polyethylene. Conductor sizes AWG 2 and larger listed and marked sunlight resistant in black only

 4 Specification of XHHW-2 cable:

XHHW-2 conductors comply with the following:
• ASTM- All Applicable Standards
• UL Standard 44
• NOM-ANCE 90° C
• Federal Specification A-A-59544
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC 70 Construction Requirements
• 500kcmil and larger SIMpull ® Product
• RoHS/Reach Compliant

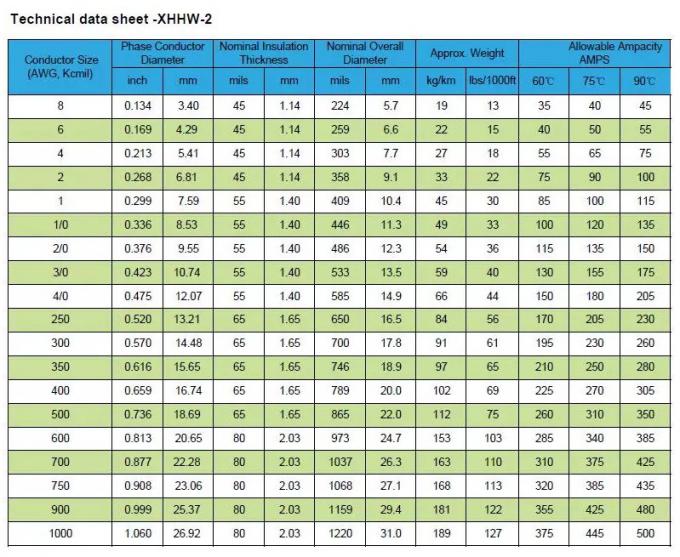

5 Parameters for XHHW cable

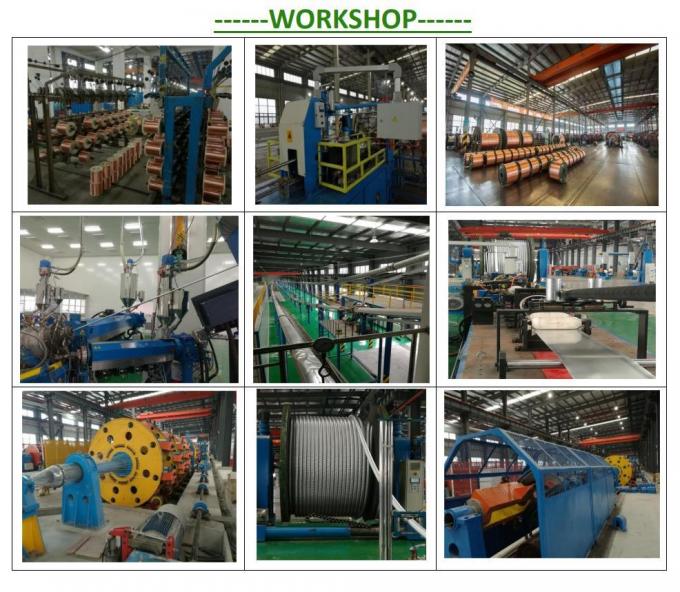

Qifan has successfully introduced about 2,000 advanced R&D, production and testing equipment from domestic and abroad, imported production lines including Nichoff copperdrawing lines, Troester 220KV EHV and Medium voltage rubber cable production line plus SIKORA X-RAY8000 on-line eccentricity measuring unit from Germany. Qifan has passed ISO9001, ISO14001, OHSAS18001 and successively acquired TUV, VDE, UL, CE, SAA, BS, AS certificate and so on.
