Low Voltage Power Cable Swa Awa Sta Armoured Power Copper XLPE Cable

Application:
XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.

Standards:IEC60502-2, BS7870-4, BS7870-7, BS7870-8

Cores: 1 Core, 3 Core

Conductor:Cu or Aluminum

Insulation:XLPE (Cross-Linked Polyethylene)

Armor:non-armor, steel tape armored, steel wire armored

Sheath:PVC or PE

Sheath Color:Black or Colors

Product Description:
-   XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-   XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-   XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-   Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-   Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
-   Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
    FR - Flame Retardant

1. Imported equipment with experienced technical team
   The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
2. Complete certification system
   Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3. Perfect Production system

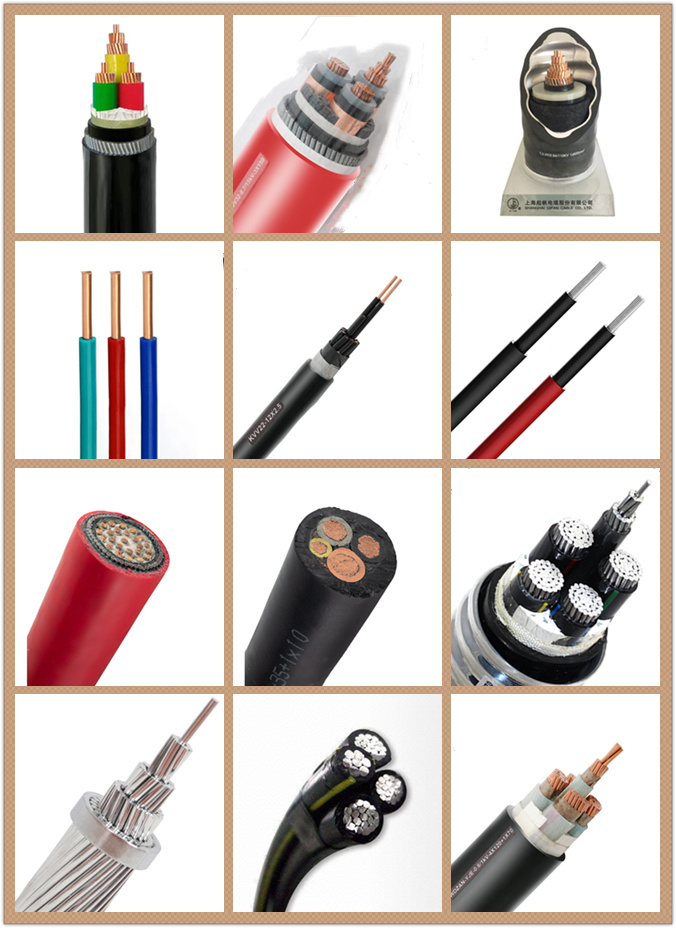

   Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4. Perfect Sales service system
   Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

Voltage Rating: The cable has a voltage rating of 0.6/1kV, indicating that it is designed for low voltage power distribution systems with a maximum operating voltage of 1 kilovolt (kV). This voltage rating is commonly used for residential, commercial, and industrial applications.

Core Configuration: The cable is available in various core configurations, including 1, 2, 3, or 4 cores. The number of cores determines the number of conductors within the cable. Each core carries a separate phase of the electrical power, typically designated as Phase A, Phase B, Phase C, and an additional neutral or earth core if applicable.

Conductor Size: The cable is available in two conductor sizes, specifically 16mm² and 25mm². These sizes refer to the cross-sectional area of the copper conductors within the cable. The conductor size determines the current-carrying capacity of the cable.

Armoring: The cable is armored with either SWA (Steel Wire Armored), AWA (Aluminum Wire Armored), or STA (Steel Tape Armored). Armoring provides mechanical protection to the cable, enhancing its strength and durability. SWA typically consists of galvanized steel wires, AWA consists of aluminum wires, and STA consists of steel tapes.

XLPE Insulation: The conductors within the cable are insulated with XLPE (Cross-Linked Polyethylene). XLPE insulation provides excellent electrical properties, thermal resistance, and durability. It ensures reliable insulation for the conductors, protecting them from external factors and ensuring safe power transmission.

Copper Conductor: The cable utilizes copper conductors, which offer excellent electrical conductivity and are resistant to corrosion. Copper conductors ensure efficient power transmission and are widely used in power cables.
